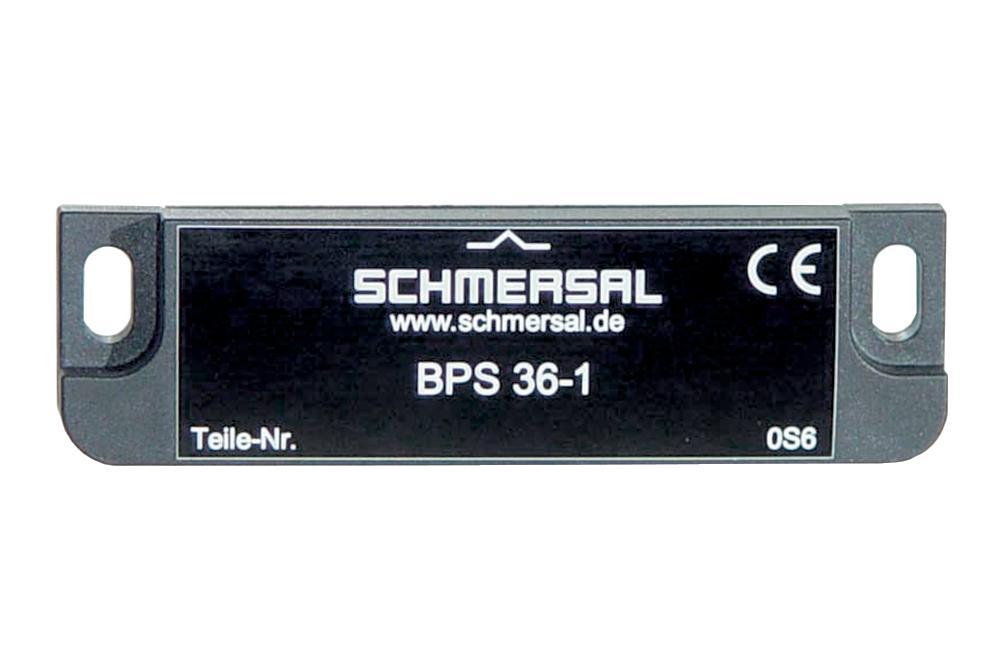

SCHMERSAL BPS36-1 SAFETY SENSOR 101190052

Product Code: 101190052

Enhance your machine safety with the Schmersal BPS36 series safety sensors. Designed for reliability, these sensors feature a durable plastic enclosure and come equipped with an actuator that measures 88 mm in length and 25 mm in width, ensuring precise operation when mounted. Ideal for various industrial applications, the BPS36 series is a testament to Schmersal's commitment to robust safety solutions.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-27-09-03
ETIM 6.0 EC002549
ETIM 7.0 EC000030
Gross Weight (g) 110.87
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 116.04
No. of Safety Contacts 4
Sensor Height (mm) 204
Sensor Length (mm) 30
Switching Element NO contact, NC contact
Switching Principle Slow action
Thermal Test Current (A) 0.25
Utilisation Category AC-15
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 200 VDC
Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP69
EAN 4030660000000
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 20000000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 50
Series BPS36
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN IEC 61508 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN IEC 60947-5-5 / EN IEC 60947-1
Terminal Type Screw terminals
