Product Code: 101190024

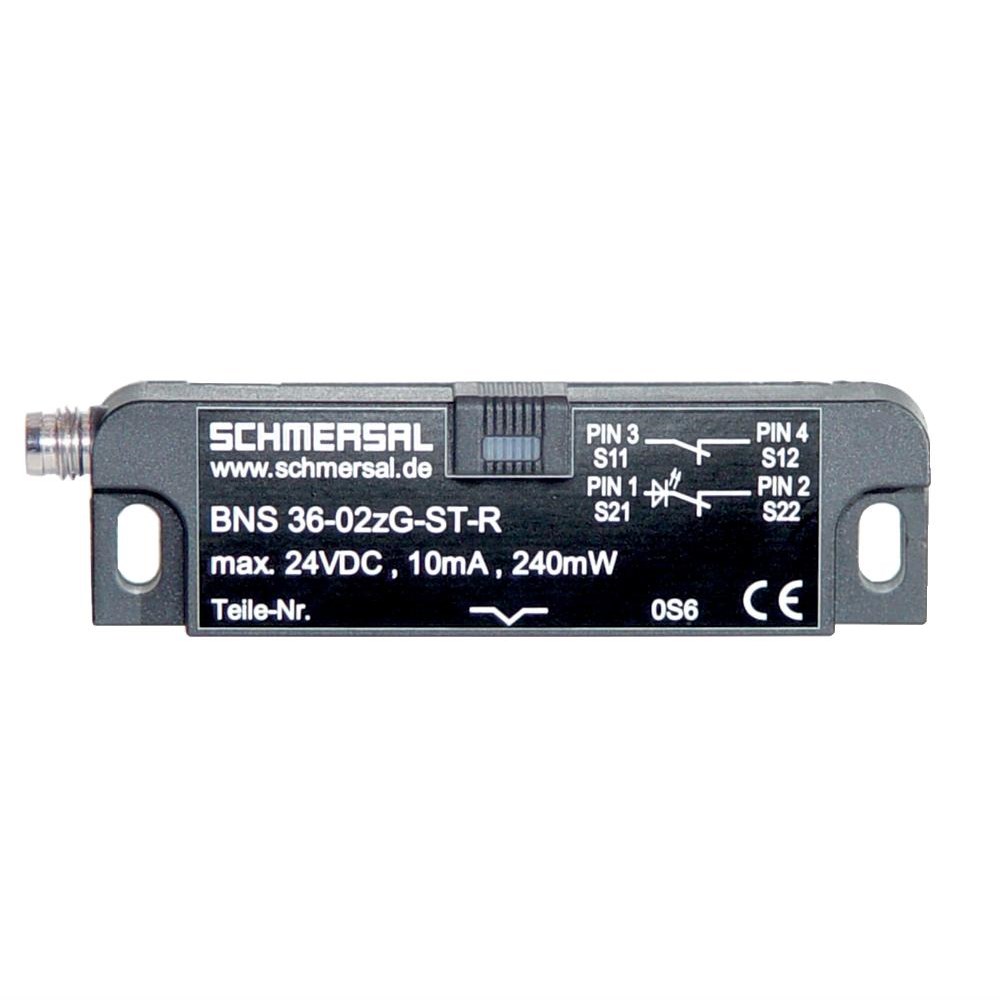

The Schmersal BNS36 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and magnetic actuation for reliable operation. This sensor features three openers, two safety contacts, and a right-hinged door mechanism for seamless integration into your safety system. It's equipped with an 8 mm 6-pole connector with latching interlocking, ensuring secure connections. With a switching voltage of 30 VDC, current of 0.4 A, and capacity of 10 W, it meets the demanding requirements of industrial environments. Ideal for engineers seeking efficient coding and dependable performance in their machine safety applications.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-09-03
eCl@ss Number, Version 9.0	27-24-90-92
ETIM 6.0	EC002549
ETIM 7.0	EC000030
Gross Weight (g)	137.84
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	86.62
No. of Safety Contacts	1
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	30
Sensor Height (mm)	204
Sensor Length (mm)	64
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	AC-15
Utilisation Category AC-15	250 VAC
Utilisation Category DC-13	200 VDC
Contact Material	AgSn0, self-cleaning, positive drive
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	50
Series	BNS36
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

SCHMERSAL BNS36-02/01Z-ST-R SAFETY SENSOR 101190024

Product Code: 101190024
