Product Code: 101188810

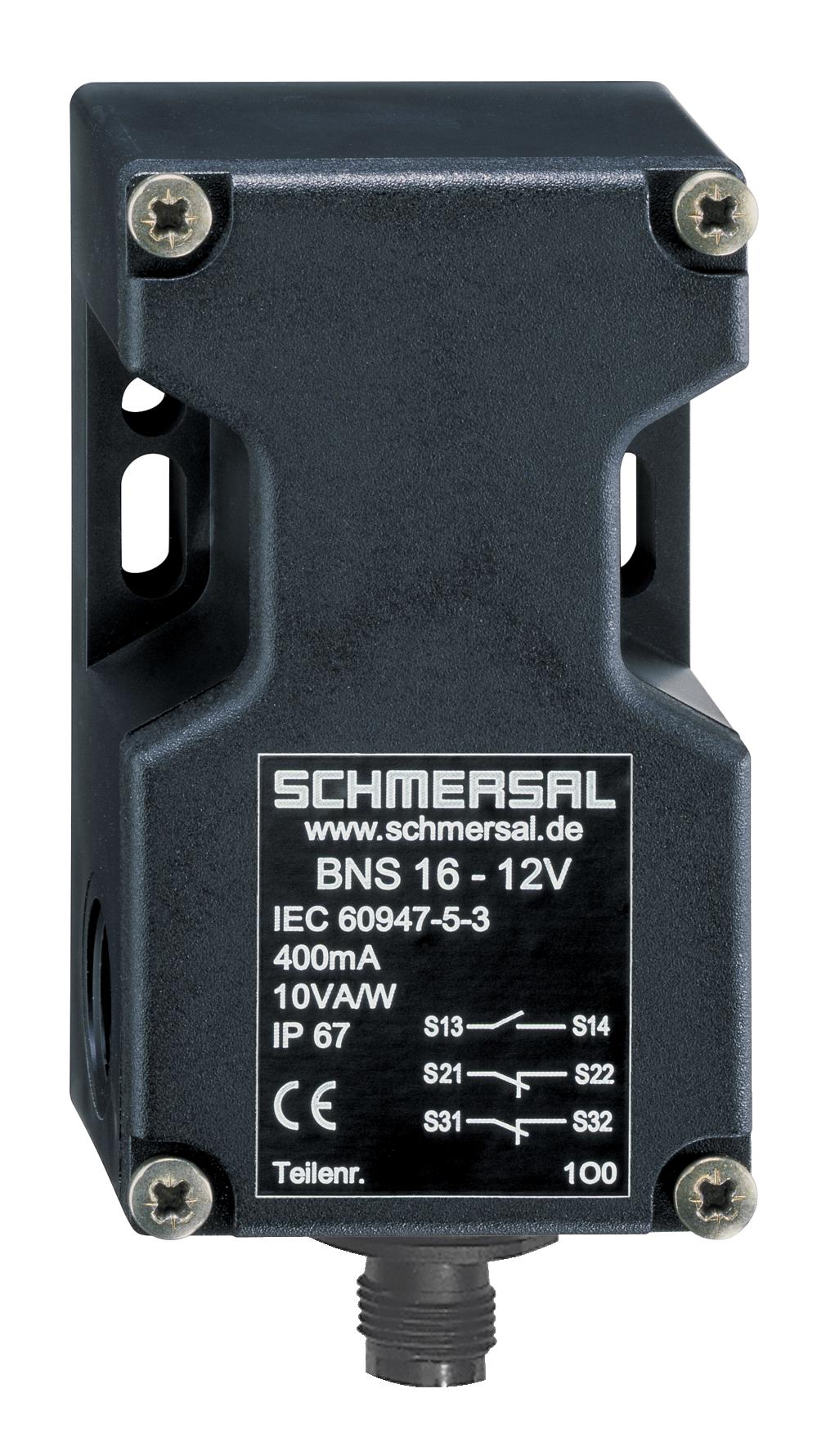

The Schmersal BNS16 is a robust safety sensor designed for machine safety applications, featuring a durable thermoplastic enclosure. This sensor requires an evaluation unit to function and is equipped with two openers and one shutter. It operates with a magnetic actuating element and connects via a centrally positioned M12 connector. With a switching voltage of 100 V AC/DC, current of 0.4 A, and capacity of 10 W, it ensures reliable performance in safeguarding equipment. The BNS16 series prioritizes straightforward installation and maintenance for engineering efficiency.

eCl@ss Number, Version 11.0	27-27-24-04
eCl@ss Number, Version 9.0	23-13-01-90
ETIM 6.0	EC000030
ETIM 7.0	EC002593
Gross Weight (g)	67.93
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	190
No. of Safety Contacts	2
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Sensor Height (mm)	107
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BNS16
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5
