Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-03
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 6.0	EC002594
ETIM 7.0	EC002593
Gross Weight (g)	190
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
Net Weight (g)	190
No. of Safety Contacts	4
Sensor Height (mm)	93.5
Sensor Length (mm)	79
Switching Element	NO contact / NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	24 VDC
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	300
Standards	EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

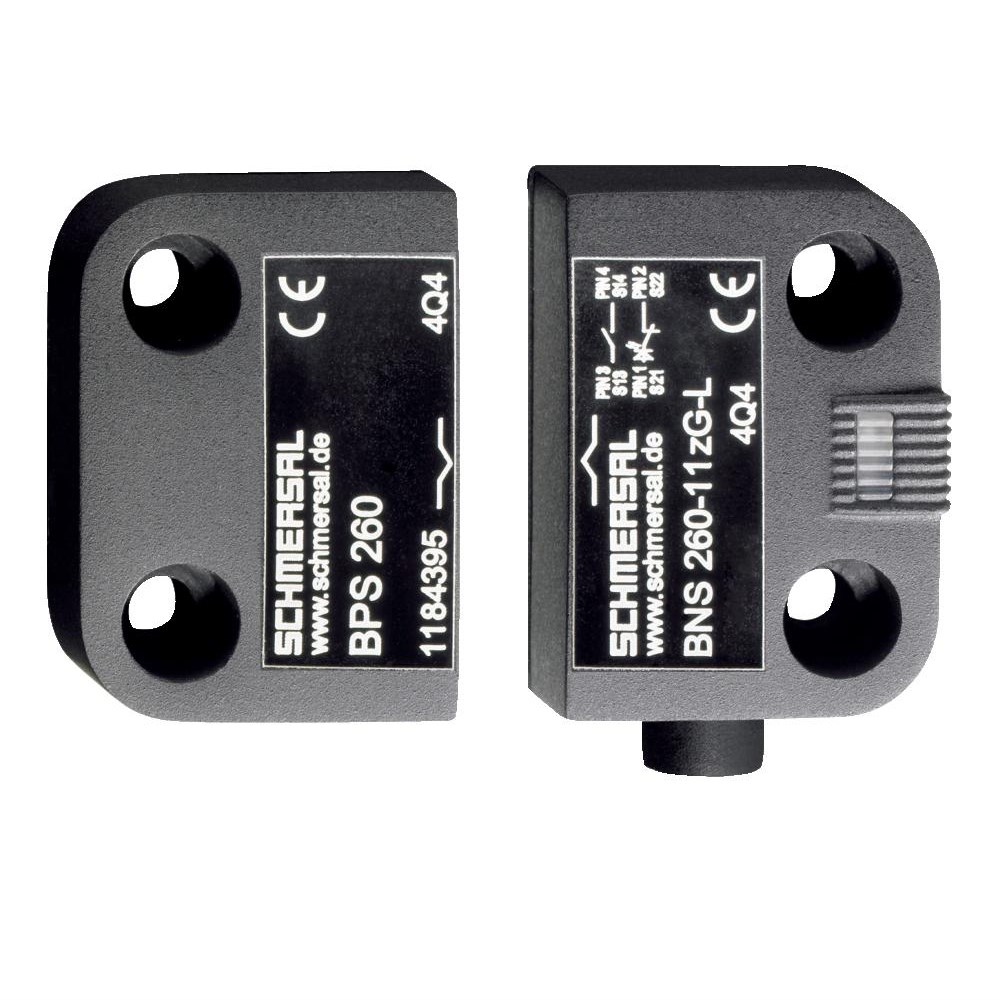

SCHMERSAL MAGNETIC SAFETY SENSOR 10 VA 101188408
