Product Code: 101186146

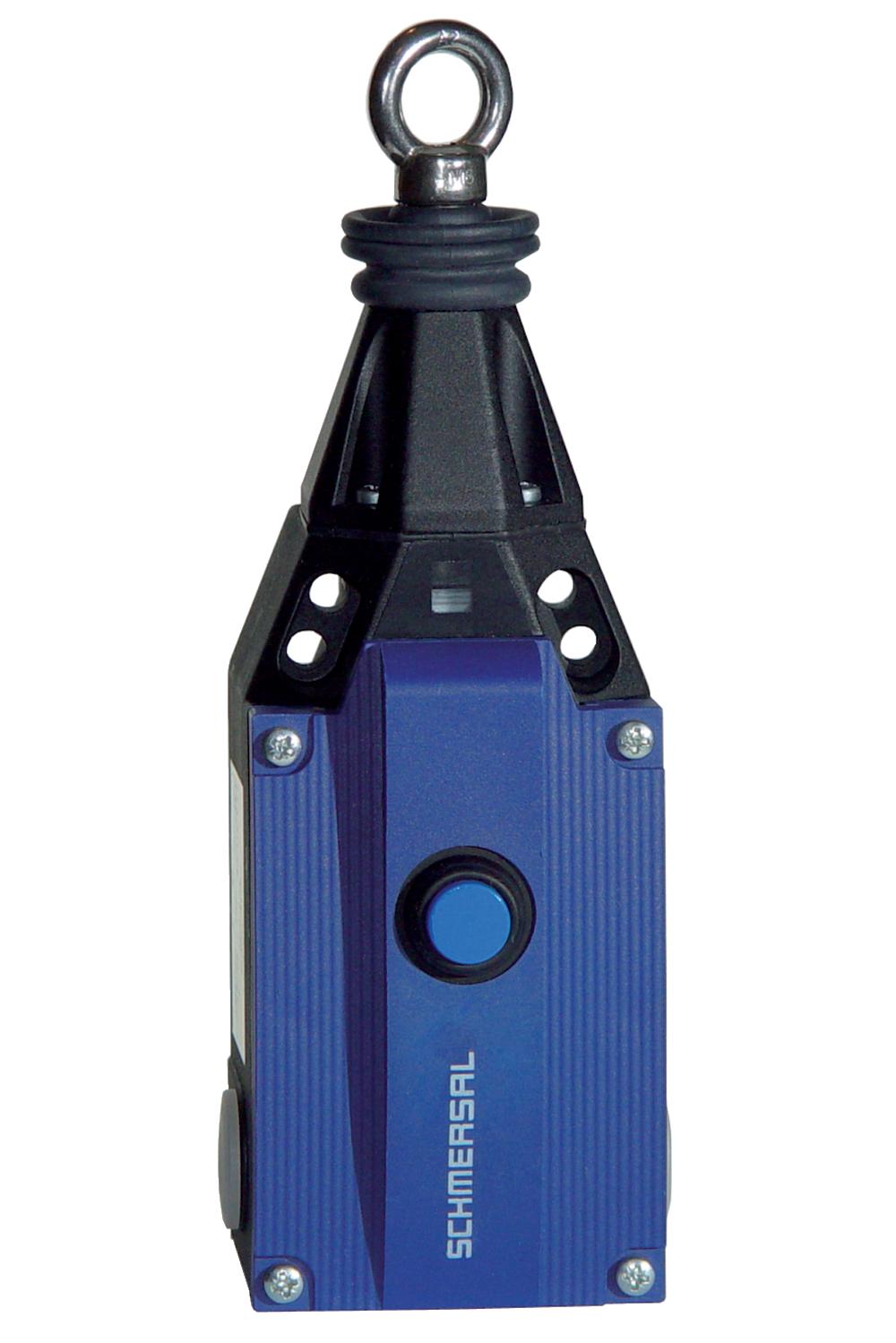

Ensure the safety of your machinery with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust metal-encased switch features a normally closed (NC) opener with snap action for reliable operation. Designed with two safety contacts and without auxiliary contacts, it ensures a secure halt to operations when needed. The switch is equipped with a screw connection terminal for stable installation and can handle a thermal test current of 6 A. It operates efficiently within utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 1 A, making it suitable for various industrial applications. Trust in the quality and durability that comes with the Schmersal brand for your machine safety needs.

eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	84.02
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-20
Minimum Temperature (°C)	-25
Net Weight (g)	405.05
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	102.6
Sensor Length (mm)	33
Switching Element	Normally open contact (NO)
Switching Principle	Slow action with staggered contacts
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	24 VDC
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	1 x 2.5
Minimum Cable Cross Section (mm²)	1.5
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	ZQ
Standards	EN IEC 60947-5-1 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN ISO 14119 / EN IEC 60947-5-5 / EN IEC 60947-1
Terminal Type	Cable, 4-pole

Safety Pushbuttons & Operator Devices

SCHMERSAL ZQ900-02 PULL-WIRE EMERGENCY STOP SWITCH 101186146

Product Code: 101186146
