Product Code: 101184381

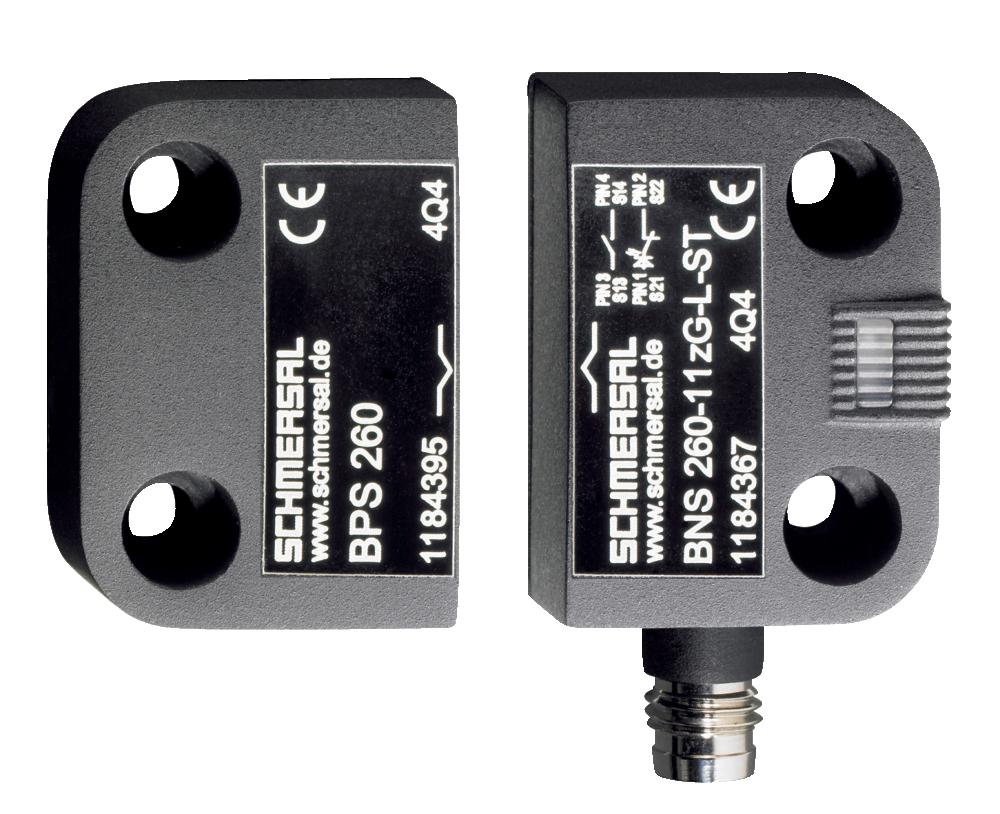

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features an innovative coding system and integral system diagnostics for reliable operation. It is equipped with two openers and two safety contacts, utilizing a magnet as the actuating element. Specifically configured for left door hinge applications, it includes an M8 terminal connector for secure electrical connections. Operating at a switching voltage of 24 VDC, the sensor has a low switching current of 0.01 A and a switching capacity of 0.2 W, making it an energy-efficient choice for safeguarding machinery access points.

eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-03
ETIM 6.0	EC002549
ETIM 7.0	EC001487
Gross Weight (g)	60
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	40
No. of Safety Contacts	4
Nominal Output Current (A)	0.01
Nominal Power (W)	0.2
Rated Maximum Operational Voltage DC (V)	24
Rated Short-circuit Current (A)	100
Sensor Height (mm)	52
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Roller lever H200
Contact Material	Ag-Ni, self-cleaning, positive drive
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL BNS260-02ZG-ST-L SAFETY SENSOR 101184381

Product Code: 101184381
