Product Code: 101184378

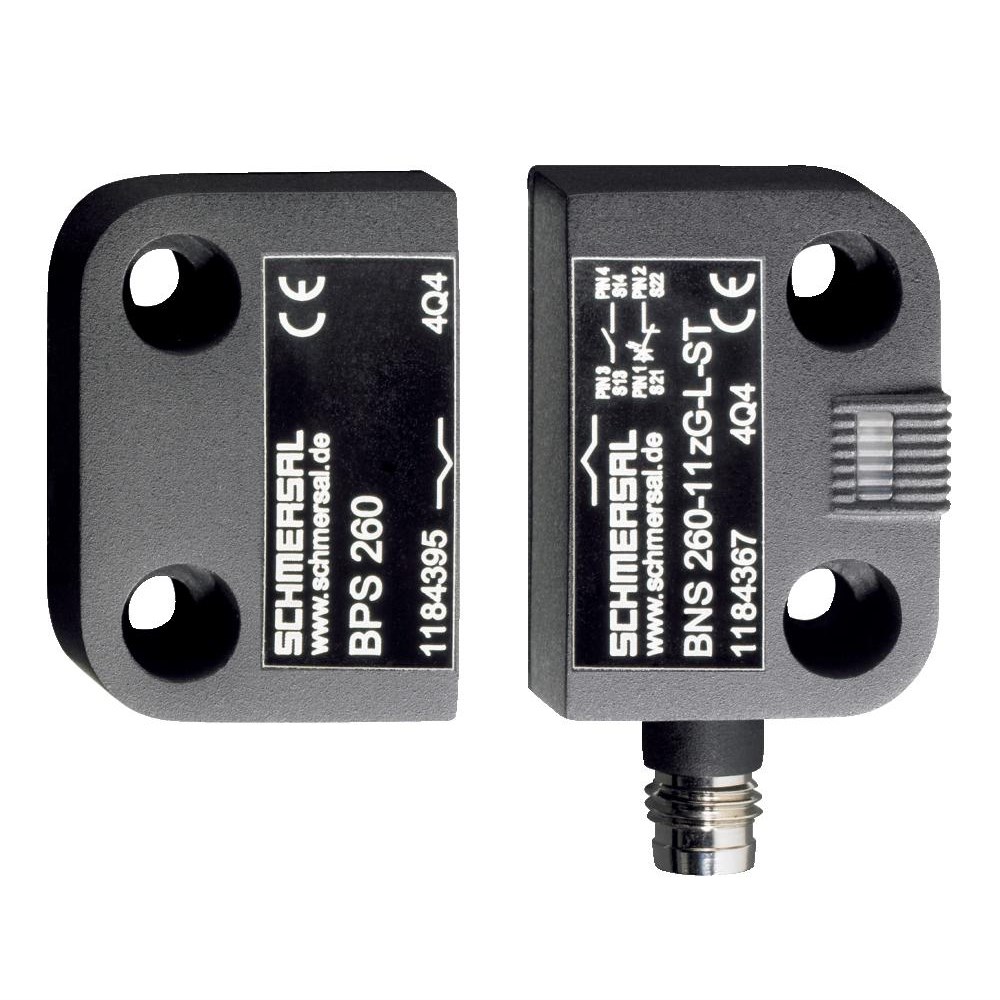

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features a magnetic actuating element and is suitable for applications requiring three openers with left-hinged door configurations. It includes two safety contacts but does not require cable wires, simplifying installation. The device connects via an 8 mm 6-pole connector with latching interlocking, ensuring secure connections. With a switching voltage of 30 VDC, current of 0.4 A, and switching capacity of 10 VA, it meets the demands of various industrial settings. Ideal for engineers looking for reliable and efficient safety sensors in their machinery without the need for complex wiring.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC002549
ETIM 7.0	EC002594
Gross Weight (g)	120
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	0
Minimum Temperature (°C)	-25
Net Weight (g)	20
No. of Safety Contacts	4
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	30
Rated Short-circuit Current (A)	100
Sensor Height (mm)	107
Sensor Length (mm)	33
Switching Element	Normally open contact (NO)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Actuator Type	Angle roller lever K230
Contact Material	Ag-Ni, self-cleaning, positive drive
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Cable

Presence Sensing Safety Devices

SCHMERSAL BNS260-02/01Z-ST-L SAFETY SENSOR 101184378

Product Code: 101184378
