Product Code: 101184361

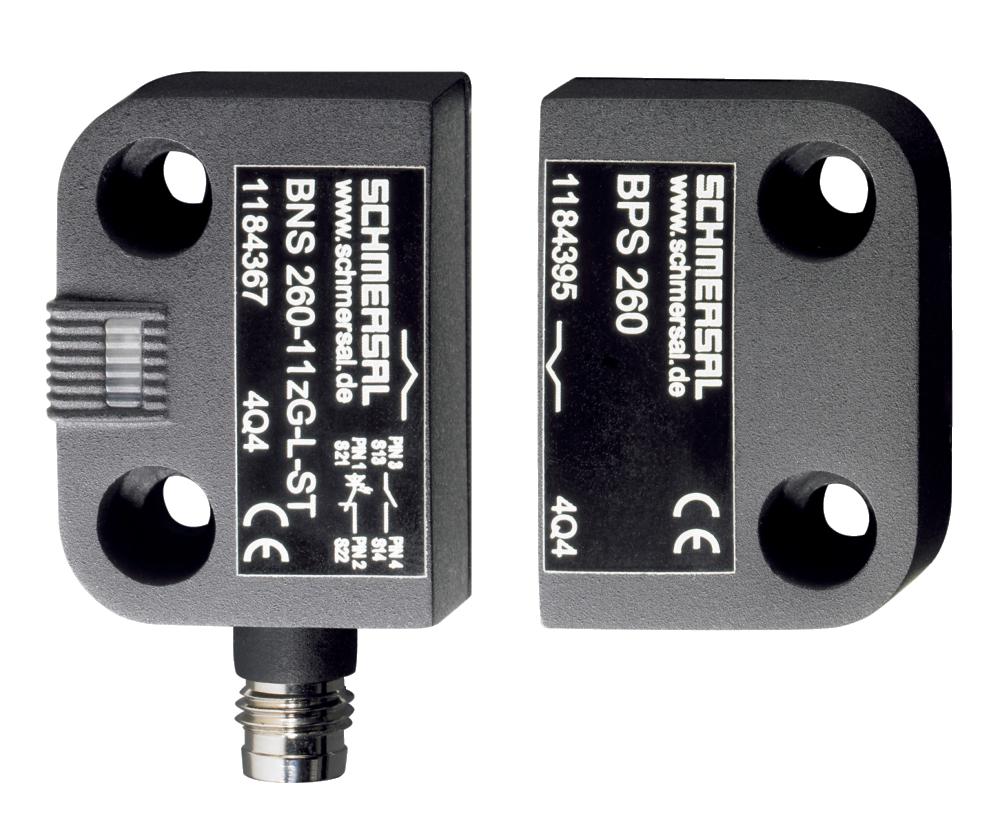

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and magnetic actuation to ensure secure operation. This sensor features two openers and two safety contacts, with a right-side door hinge orientation for precise installation. It utilizes an M8 connector terminal for reliable connectivity. Engineered for optimal performance, the unit operates at a switching voltage of 75 VDC, a current of 0.4 A, and has a switching capacity of 10 VA. Ideal for engineers seeking dependable safety sensors in their machinery without the need for cable wires or shutters.

eCl@ss Number, Version 11.0	27-27-27-01
eCl@ss Number, Version 9.0	27-27-27-01
ETIM 6.0	EC001831
ETIM 7.0	EC000030
Gross Weight (g)	2775
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	302.22
No. of Safety Contacts	2
Nominal Output Current (A)	0.4
Nominal Power (W)	10
Rated Maximum Operational Voltage DC (V)	75
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	14.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	AC-15
Brand	SCHMERSAL
Actuator Type	Angle roller lever K240
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	90
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	BNS260
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

SCHMERSAL BNS260-02Z-ST-R SAFETY SENSOR 101184361

Product Code: 101184361
