Product Code: 101184327

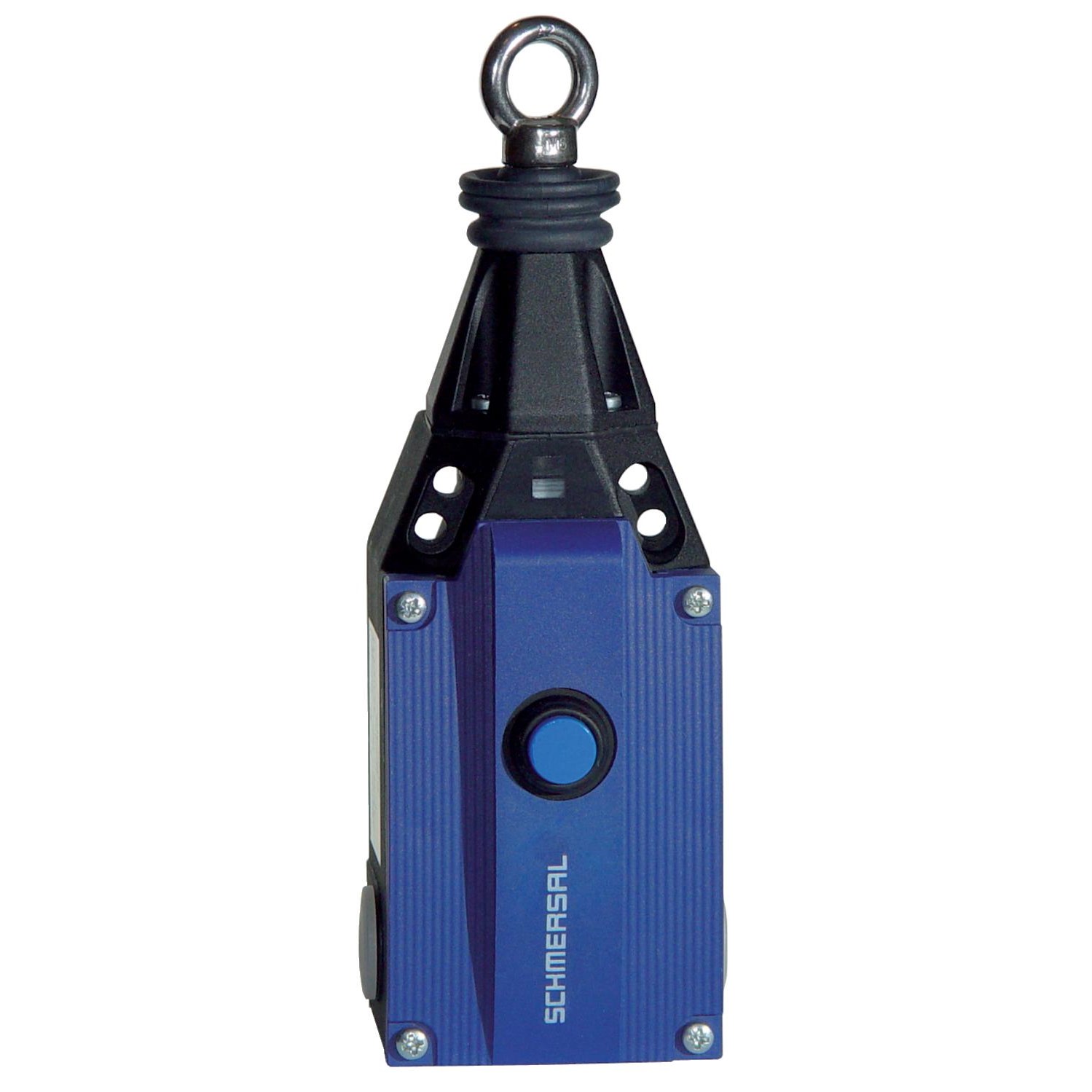

The Schmersal ZQ Series pull-wire emergency stop switch is designed for robust machine safety with its durable metal enclosure. This E-Stop features a snap action switching element with both NO and NC contacts, ensuring reliable stopping of machinery in an emergency. It includes one auxiliary contact and one safety contact, with a screw connection terminal for secure wiring. Rated for thermal test current at 6 A, it can handle utilisation categories AC-15 at 230 VAC up to 4 A and DC-13 at 24 VDC up to 1 A. Ideal for engineers looking for dependable and efficient safety solutions within their machinery systems.

eCl@ss Number, Version 11.0	27-27-27-01
eCl@ss Number, Version 9.0	27-27-27-01
ETIM 6.0	EC001831
ETIM 7.0	EC000030
Gross Weight (g)	1690
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	4 A gG D-fuse to DIN EN 60269-1
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	75
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	14.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Brand	SCHMERSAL
Actuator Type	Angle roller lever K230
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	90
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	ZQ
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

SCHMERSAL ZQ900-11 PULL-WIRE EMERGENCY STOP SWITCH 101184327
