Product Code: 101177198

Enhance your machine safety with the Schmersal CST180 series safety sensors. These robust sensors feature a plastic enclosure and are designed for both front and lateral actuation, ensuring versatile integration into various safety systems. With an actuator length of 24.4 mm and width of 46 mm, they offer precise operation in demanding industrial environments. Trust in Schmersal's commitment to reliable machine safety solutions with these efficient and durable safety sensors.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	923.28
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	713
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	103.5
Sensor Length (mm)	30
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Roller plunger
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Series	CST180
Standards	EN IEC 60947-5-1 / EN ISO 14119 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

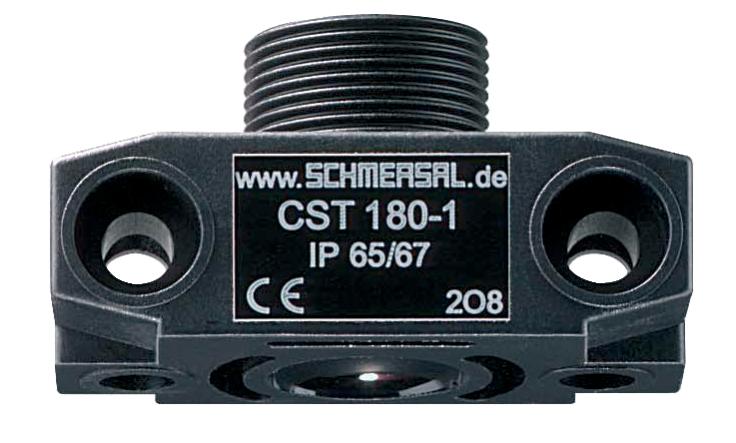

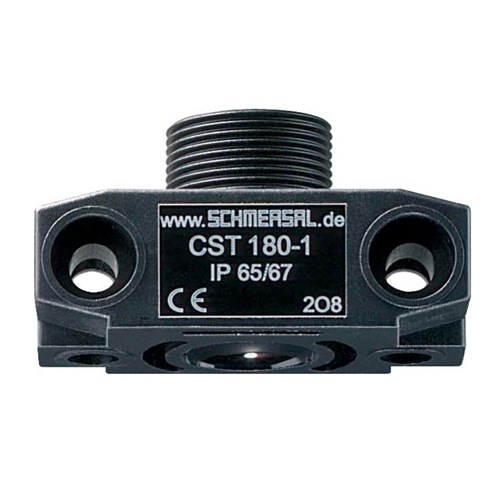

SCHMERSAL CST180-1 SAFETY SENSOR 101177198

Product Code: 101177198
