Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-34-02
eCl@ss Number, Version 9.0	27-37-12-12
ETIM 6.0	EC001855
ETIM 7.0	EC002549
Gross Weight (g)	80
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	165
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	85.6
Sensor Length (mm)	13
Switching Element	Normally open contact (NO)
Switching Principle	Snap action
Utilisation Category	AC-15
Working Principle	RFID
Actuator Type	Plunger
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards	EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

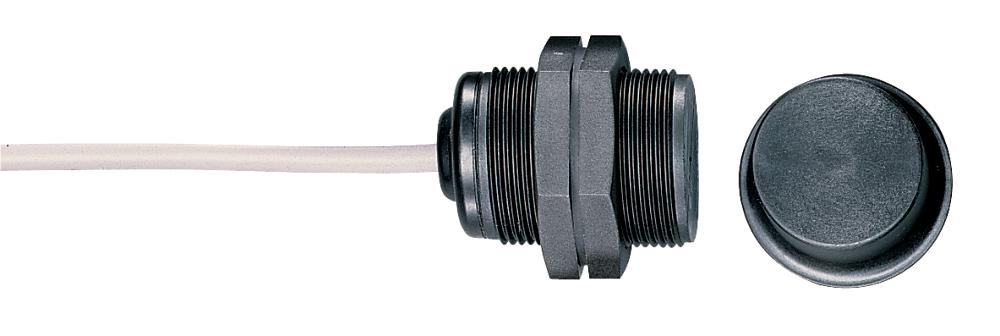

SCHMERSAL MAGNETIC SAFETY SENSOR 101174794
