Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	95
Housing Construction Form	Block
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
Net Weight (g)	85
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	114
Sensor Length (mm)	30
Switching Element	Bistable contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Working Principle	Inductive
Brand	SCHMERSAL
Actuator Type	Plunger S300
Contact Material	Silver
Degree of Protection	IP67 / IP65
EAN	4250120000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	20000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	400
Standards	EN 81-20 / EN 81-50
Terminal Type	Cage clamps, WAGO-Cage-Clamp

Safety Relays & Controllers

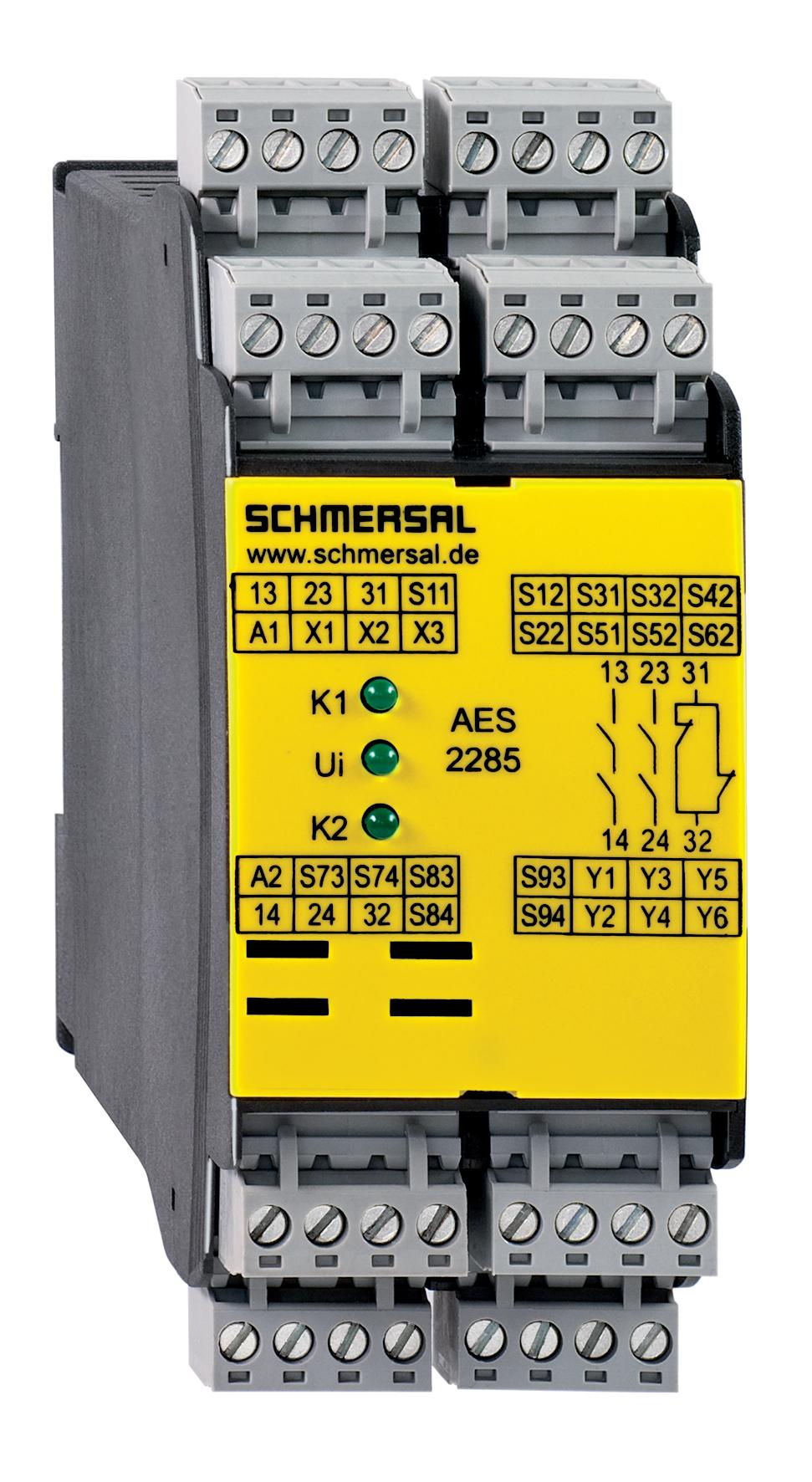

SCHMERSAL SAFETY MONITORING MODULE 101172211
