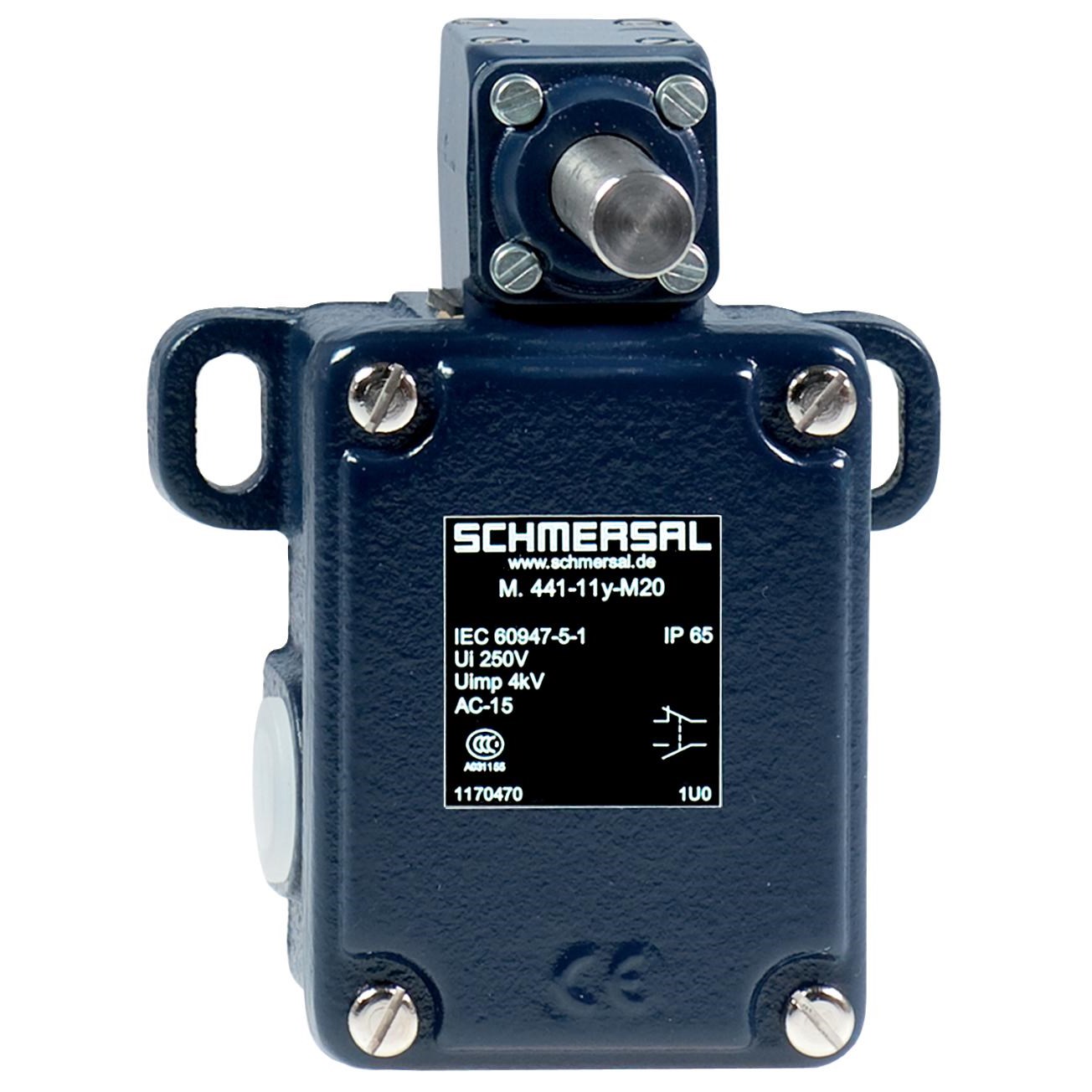

Schmersal 101170473 Position Switch 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101170473

  • Operates at 230 VAC, 4 A
  • Durable grey cast iron housing
  • IP65 protection rating
  • Complies with ENIEC 60947-5-1
  • Snap action switching mechanism
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 6 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 10000000 Operations
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Snap Action

Description

<p>When selecting a switch for your industrial or commercial applications, reliability and durability are key factors to consider. This robust switch offers just that with its comprehensive specifications designed to meet demanding operational environments.</p><p>Operating at a rated voltage of 230 VAC and a current of 4 A, this switch is well-suited for various electrical circuits. Its housing material consists of grey cast iron and galvanized components, ensuring excellent protection against mechanical impacts and environmental conditions. With an IP65 degree of protection, it stands resilient against dust ingress and water jets from any direction, making it ideal for harsh settings.</p><p>The switch complies with ENIEC 60947-5-1 standards, providing assurance of safety and performance in industrial control systems. It features a contact configuration of 1NO+1NC (one normally open and one normally closed), offering flexibility in circuit design by allowing both opening and closing operations as needed.</p><p>Snap action switching ensures quick response times which can be crucial in emergency stop functions or other rapid-response scenarios. The contacts are made from silver, known for its excellent conductivity and resistance to corrosion, thus enhancing the longevity and efficiency of the device.</p><p>With a fuse rating accommodating up to 16 A gG D-Fuses, you have added security against overloads that might otherwise compromise the system&amp;#39;s integrity. The cable cross-section capacity is set at 1.5 sq-mm providing adequate support for electrical connections without unnecessary bulk or complexity.</p><p>For those concerned about durability under frequent use, this switch boasts an impressive mechanical life expectancy rated at 10 million operations. Such longevity minimizes downtime due to maintenance or replacement needs over time.</p><p>The contact opening measures at two points each with dimensions of 6 mm ensuring reliable connectivity throughout usage cycles while maintaining structural stability during operation transitions.</p><p>Overall this product presents itself as a dependable choice tailored towards professionals seeking efficient control solutions within their systems without sacrificing quality or performance metrics crucial to their specific requirements.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
