Product Code: 101168785

Discover the Schmersal 422 Series Roller Lever L position switch, a robust medium-duty sensor designed for precise operation in industrial environments. This metal-enclosed switch features a roller lever actuating element and a single NC contact switching element, ensuring reliable performance. Equipped with a creep circuit element and screw connection terminals, it is engineered to handle AC-15 utilization category with a rating of 4 A at 400 VAC. The unit offers dual M20 x 1.5 cable entries and operates within a temperature range of -30°C to +90°C. With an IP65 rating according to IEC/EN 60529, this position sensor guarantees protection against dust ingress and water jets, making it suitable for diverse applications. Choose Schmersal's trusted engineering for your position sensing needs.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC001832
Gross Weight (g)	60
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	90
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-30
Net Weight (g)	1
No. of Auxiliary Contacts	2
No. of Safety Contacts	3
Rated Short-circuit Current (A)	400
Sensor Height (mm)	171.5
Sensor Length (mm)	41
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller plunger R200
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	50000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	30
Series	422 roller lever L
Standards	EN IEC 60947-5-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

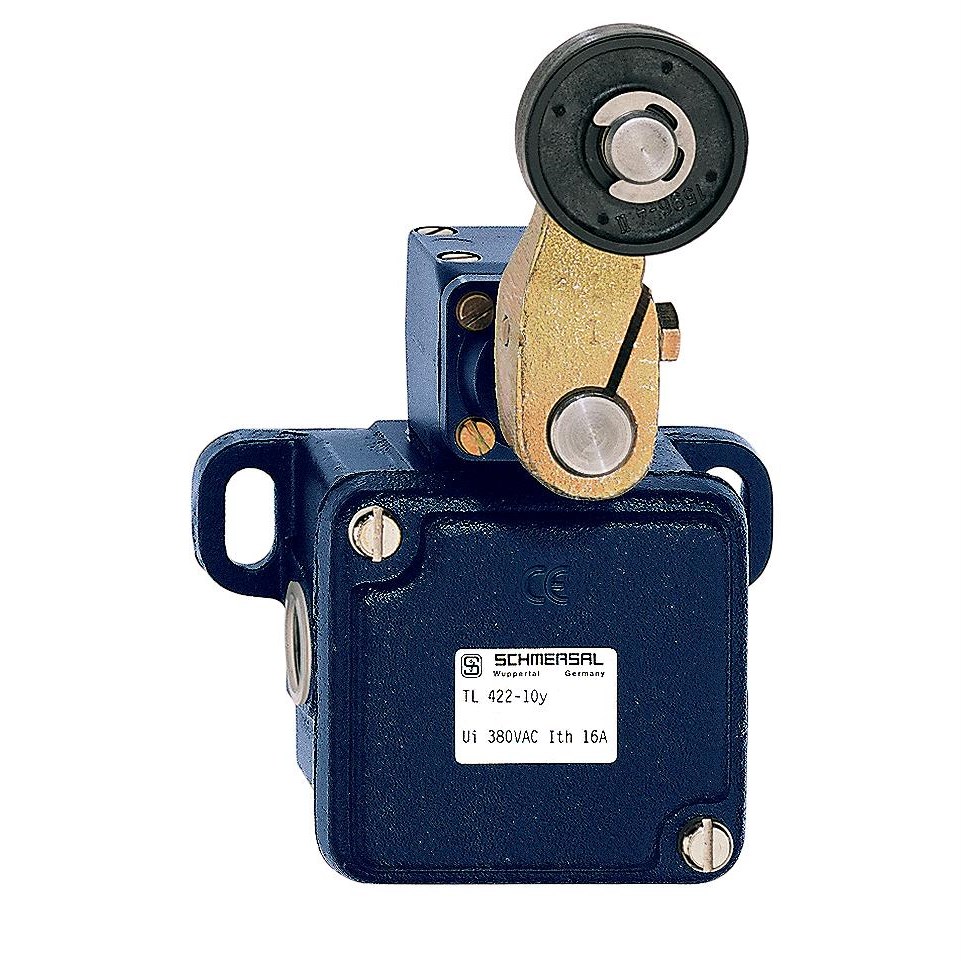

SCHMERSAL TL422-01Y-M20 MEDIUM-DUTY POSITION SWITCH 101168785
