Product Code: 101167898

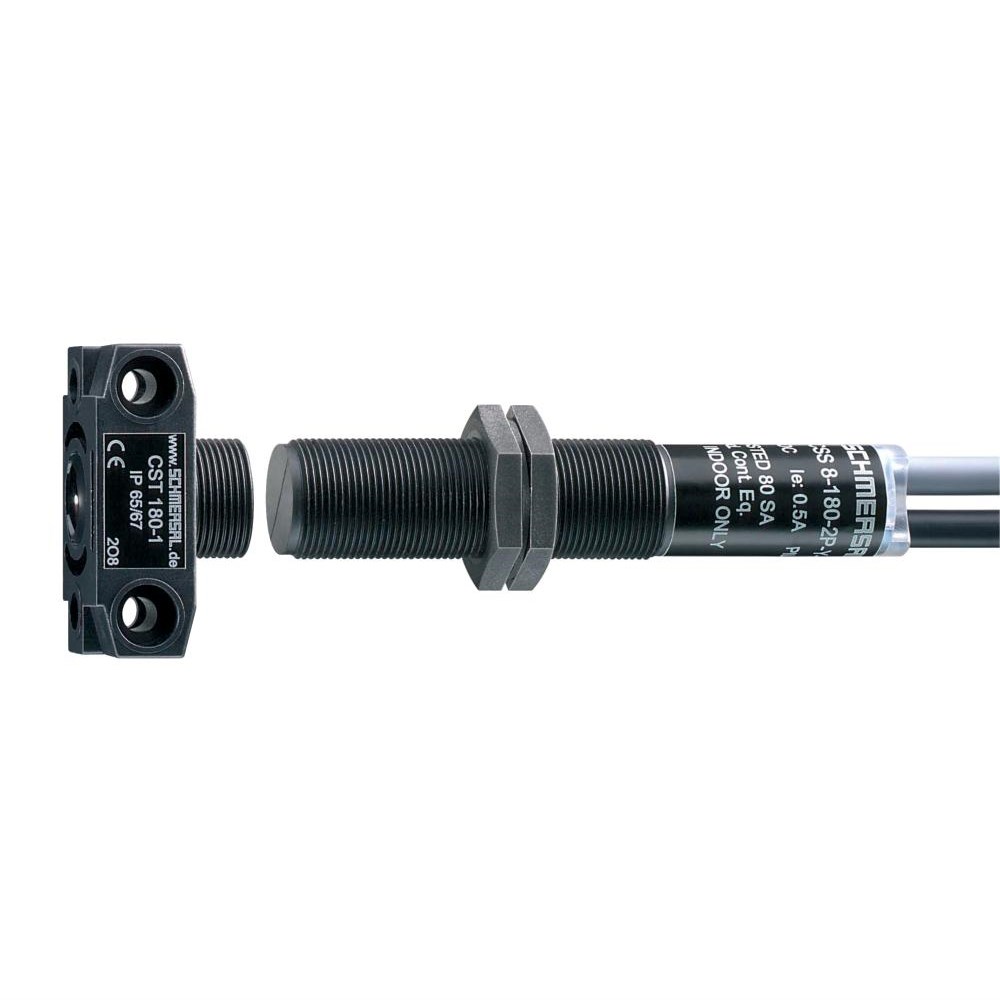

The Schmersal CSS8-180 safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features advanced short circuit detection and recognition capabilities, enhancing operational safety. It supports up to 16 sensors in series wiring and offers two fail-safe digital outputs for reliable performance. The unit is equipped with an M12 cable connector and an M18 ISO thread, ensuring easy integration into various systems. With integral system diagnostics, the sensor provides continuous monitoring and immediate feedback on system integrity. Operating at 24 VDC with a current of 500 mA, it meets the DC-12/13 utilization category requirements. Ideal for engineers looking for a cascading-capable safety device that combines efficiency with state-of-the-art safety functions.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-03
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	39.382
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-25
Net Weight (g)	3500
No. of Auxiliary Contacts	3
No. of Safety Contacts	1
Rated Maximum Operational Voltage DC (V)	24
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	33.2
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Offset roller lever K210
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	20000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	0.5
Rated Insulation Voltage (V)	500
Series	CSS8-180
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

SCHMERSAL CSS8-180-2P-Y-LST SAFETY SENSOR 101167898

Product Code: 101167898

Technical Specifications
