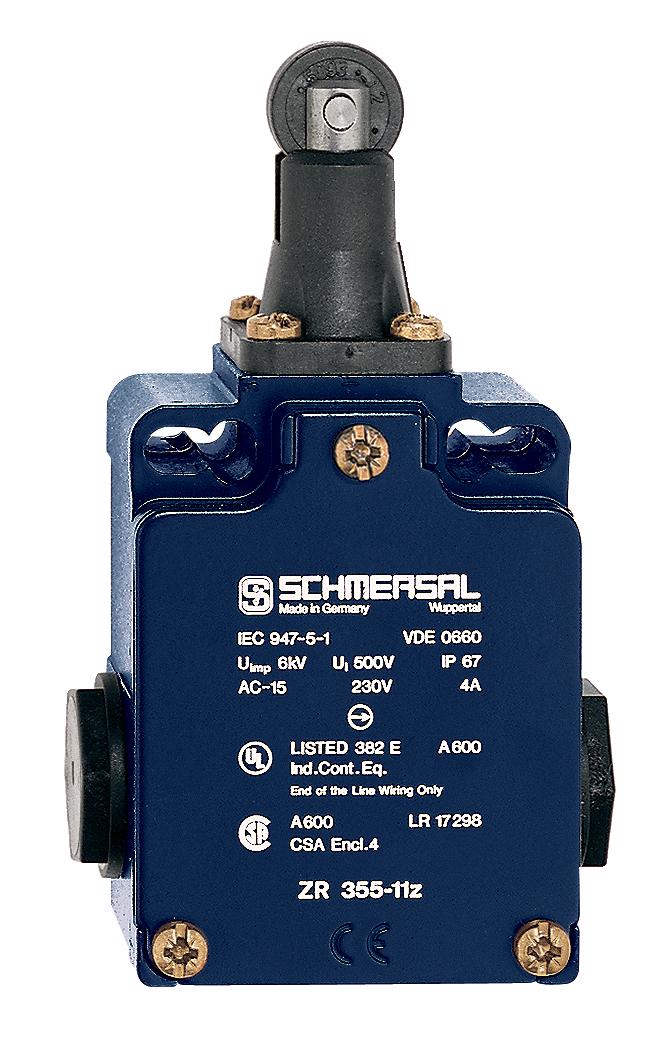

SCHMERSAL ZR355-11Z-M20 POSITION SWITCH 101167072

Product Code: 101167072

Explore the Schmersal Series 355 position switch, a robust machine safety solution housed in a durable metal enclosure. This switch features a roller plunger actuating element and offers both NO and NC contact configurations. It is designed to handle a thermal test current of 10 A. Optimized for performance, it operates efficiently within utilisation categories AC-15 at 230 VAC with a 4 A rating and DC-13 at 24 VDC also with a 4 A rating. Ideal for ensuring safety in industrial settings, the Schmersal position switch is an essential component for machinery where precision and reliability are paramount.

Technical Specifications

Actuator Type Angle roller lever K230
Enclosure Material Metal, zinc die-cast
Gross Weight (g) 90.269
Net Weight (g) 150
Maximum Temperature (°C) 80
Minimum Ambient Temperature (°C) -15
Minimum Temperature (°C) -30
Brand SCHMERSAL
Series 355
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-92
ETIM 7.0 EC002544
ETIM 6.0 EC001038
eCl@ss Number, Version 11.0 27-37-12-12
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 75
Maximum Cable Cross Section (mm²) 2.5 , flexible
Minimum Cable Cross Section (mm²) 0.75
Contact Material Gold-plated silver (AgNi 15 + Au 0.3µm)
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse quick blow
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 2
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Switching Element Opener (NC)
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Sensor Length (mm) 33
Sensor Height (mm) 73.5
Degree of Protection IP67
Standards EN IEC 60947-5-2 / DIN VDE 0660-208
