Product Code: 101166307

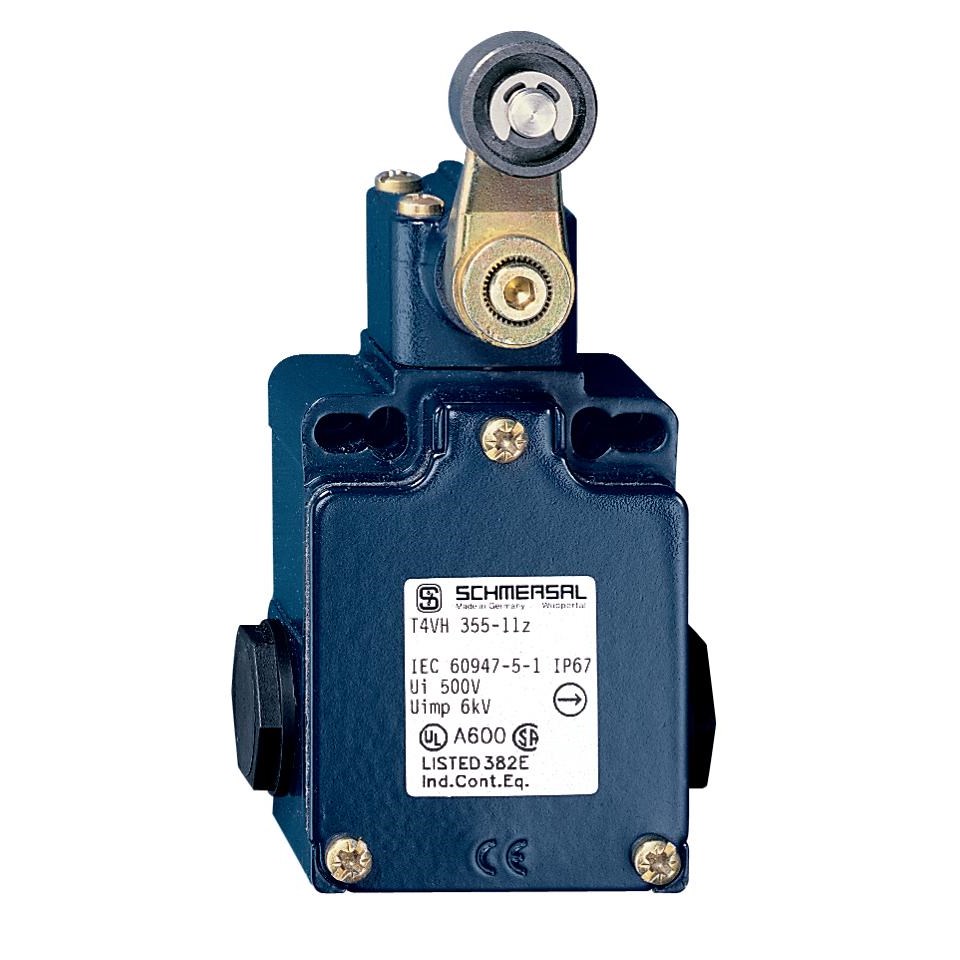

Explore the Schmersal 355 Series Position Switch, designed for robust machine safety applications. This switch features a durable metal enclosure and a roller lever actuating element. It is equipped with both NO and NC contacts to suit various control requirements. With a thermal test current of 10 A, it operates efficiently under utilisation categories AC-15 at 230 VAC with a 4 A rating and DC-13 at 24 VDC also with a 4 A rating. Engineered for reliability, this position switch is an essential component for ensuring operational safety in industrial settings.

Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-24-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002544
ETIM 7.0	EC002549
Gross Weight (g)	0.35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-30
Net Weight (g)	140
No. of Auxiliary Contacts	2
No. of Safety Contacts	3
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	108.5
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Plunger S200
Contact Material	Gold-plated silver (AgNi 10 + Au 0.3µm)
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	355
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Spring pulley connection
