Product Code: 101166286

Enhance your machine safety with the Schmersal AZM161 Series solenoid interlock. This robust power-to-lock device ensures secure machine guarding with a manual release option for flexibility. It features three actuating directions, two auxiliary contacts, and four safety contacts for comprehensive control. The screw terminal connectors facilitate easy installation, while the NO/NC contact configuration allows for versatile operation. With a thermal test current of 6A and rated control voltage of 230 VAC, it meets utilisation categories AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 2.5 A), making it suitable for a wide range of applications in machine safety systems.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-03
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002544
ETIM 7.0	EC002549
Gross Weight (g)	450
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	3
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	40
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	109
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Working Principle	Electromechanical
Actuator Type	Roller plunger
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Light alloy die-casting
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	AZM161
Standards	EN IEC 60947-5-2 / DIN VDE 0660-208
Terminal Type	Screw terminals M20 x 1.5

Safety Interlocks

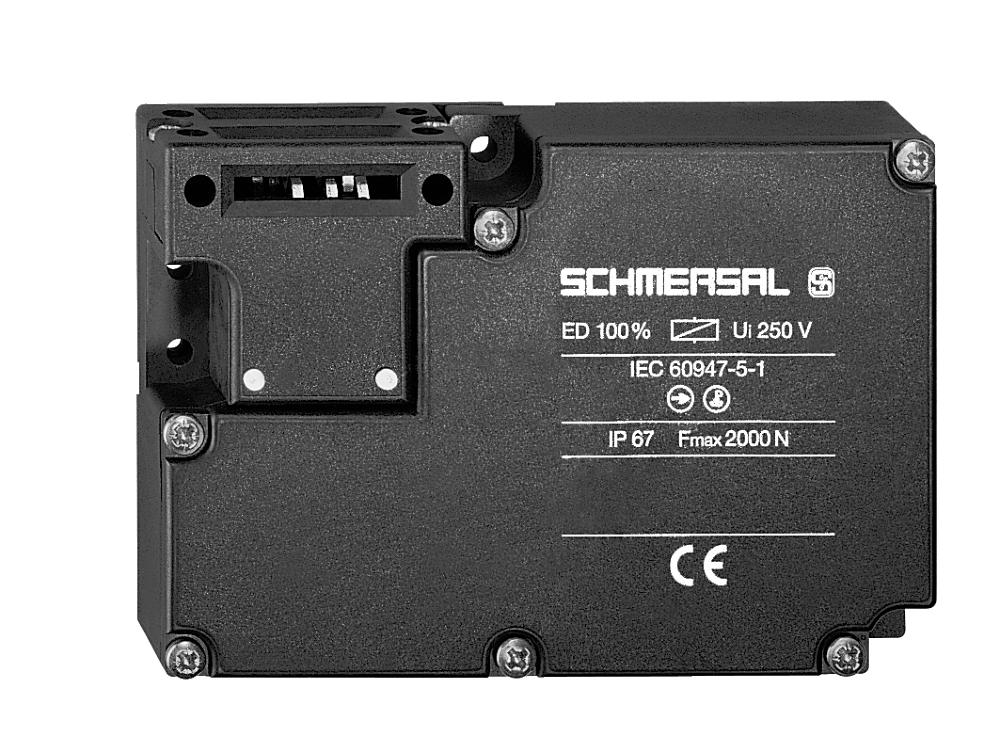

SCHMERSAL AZM161SK-12/12RKA-M16-110/230V SOLENOID INTERLOCK 101166286
