Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	0
Net Weight (g)	45
No. of Auxiliary Contacts	2
No. of Safety Contacts	3
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	73.5
Sensor Length (mm)	33
Switching Element	Opener (NC)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Offset roller lever K200
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Standards	EN IEC 60947-5-1
Terminal Type	Cable

Presence Sensing Safety Devices

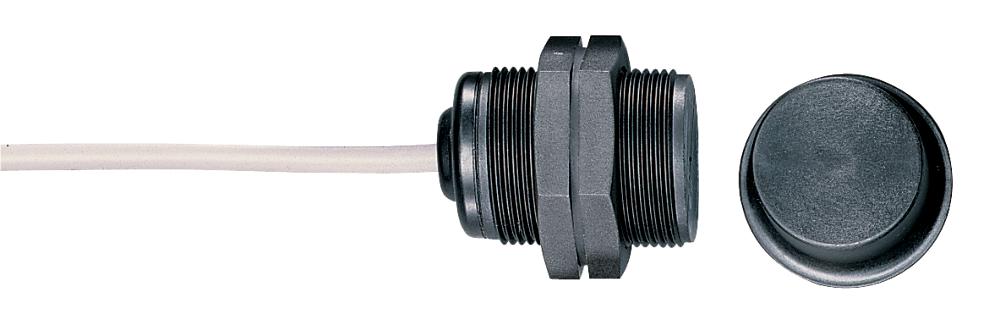

SCHMERSAL NON-CONTACT MAGNETIC SAFETY SENSOR CABLE 101166248
