Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC002549
Gross Weight (g)	45
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Net Weight (g)	4300
No. of Auxiliary Contacts	2
No. of Safety Contacts	4
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	75.5
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Angle roller lever K250
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Grey cast iron, galvanised
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	100000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	300
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

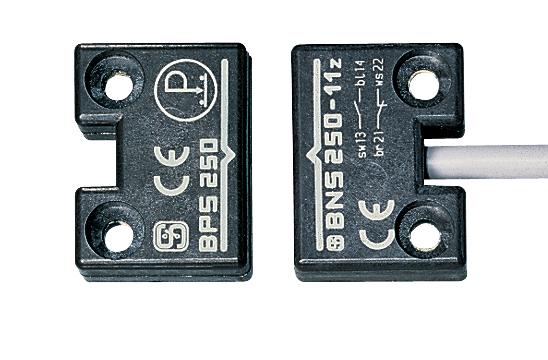

SCHMERSAL MAGNETIC SAFETY SENSOR 101165717
