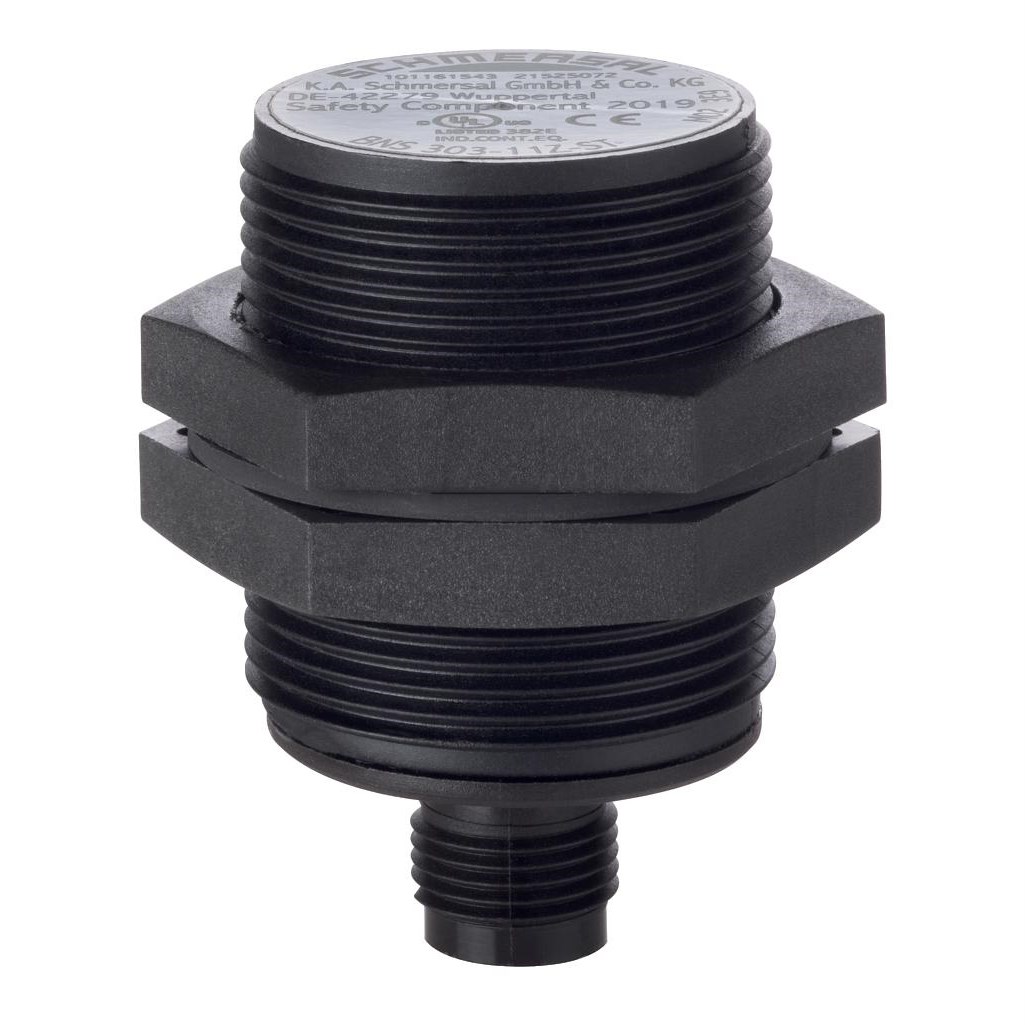

Schmersal 101161543 Magnetic Safety Sensor

Product Code: 101161543

  • Operates at 100 VAC, 0.4 A
  • Durable with 25M mechanical cycles
  • IP67 rated for robust protection
  • Functions in -25 to 70°C range
  • Complies with BG-GS-ET-14, EN IEC 60947-5-3
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series BNS303
Actuating Element Magnet
Actuator Type Rod lever
Contact Material Silver
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Number of Poles 4
Operational Temperature -25 to 70 deg C
Overvoltage Category 3
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 44 mm L
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type Connector
Vibration Resistance 10-55 Hz

Description

<p>For professionals in the electrical engineering and automation sectors, this product offers a robust and reliable solution for various industrial applications. Designed with precision and durability in mind, it operates efficiently at a rated voltage of 100 VAC and supports a current of 0.4 A, delivering a power output of 10 W. This makes it suitable for operations that demand consistent performance without compromising on energy efficiency.</p><p>The product is engineered to withstand challenging environments, thanks to its housing made from glass fibre reinforced thermoplastic. This material choice not only ensures longevity but also provides enhanced protection against mechanical impacts and harsh conditions. With an impressive degree of protection rated at IP67, the device is fully protected against dust ingress and can withstand immersion in water up to one meter deep for limited periods, making it ideal for use in demanding industrial settings.</p><p>One of the standout features is its remarkable mechanical life span, capable of enduring up to 25 million cycles. This level of durability translates into reduced maintenance requirements and downtime, offering significant cost savings over time.</p><p>In terms of operational resilience, the product performs reliably within a temperature range from -25 to 70 degrees Celsius. It also boasts vibration resistance between frequencies of 10-55 Hz, ensuring stable operation even in environments subject to frequent vibrations.</p><p>Safety compliance is another critical aspect where this product excels. It adheres rigorously to standards such as BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1. These certifications affirm its suitability for integration into safety-critical systems where reliability cannot be compromised.</p><p>The actuating element utilizes magnet technology which enhances precision control while maintaining simplicity in installation and operation procedures. Measuring just 44 mm in length, the sensor size allows easy incorporation into existing systems without requiring extensive modifications or additional space considerations.</p><p>Overall, this product presents itself as a dependable component that meets stringent technical requirements while providing peace of mind through robust performance metrics and adherence to international safety standards.</p>
