Product Code: 101161475

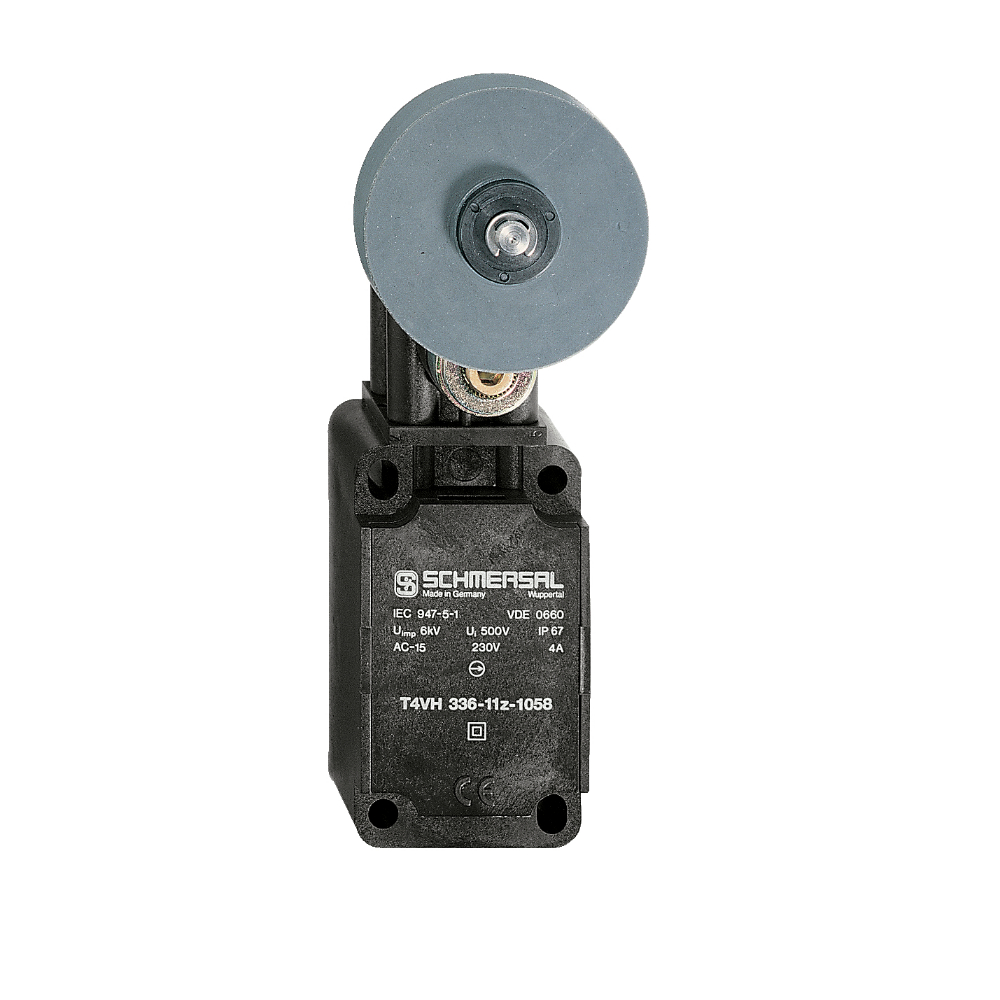

Explore the Schmersal 336 Series Position Switch designed for machine safety applications. This robust switch features a thermoplastic enclosure and a roller lever as the actuating element. It is equipped with both NO and NC contact switching elements, ensuring versatile integration into various control systems. With a thermal test current of 10 A, it operates efficiently under AC-15 utilization category at 230 VAC with a rated operational current of 4 A, and under DC-13 utilization category at 24 VDC also with a rated operational current of 4 A. The Schmersal brand guarantees reliability and quality for your machinery's safety requirements.

Design of Actuating Element	Roller lever
Design of Control Element	1NO, 1NC
Housing Construction Form	Norm construction design
Maximum Temperature (°C)	80
Minimum Temperature (°C)	-30
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Safety Functions	Yes
Switching Frequency	5,000 /h
Switching Principle	Slow action
Termination	Screw terminals M20 x 1.5
Utilisation Category	AC-15: 230 V / 4 A, DC-13: 24 V / 4 A
Brand	SCHMERSAL
Actuator Type	A to EN 50041
Ambient Temperature Range (°C)	-30 to +80
Contact Material	Silver
Conventional Thermal Current - Ithe (A)	10
Degree of Protection	IP67
Dimensions (mm)	40.5W X 144.5H X 38D
Material	Housing -Plastic, glass-fibre-reinforcedg, Lever-Metal film
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Short-Circuit Capacity - Icn (kA)	1 to EN 60947-5-1
Reference No.	T4VH 336-11Z-M20-1058
Series	336
Standards	BG-GS-ET-15, EN ISO 13849-1, EN IEC 60947-5-1
Weight (kg)	0.185
