Product Code: 101160102

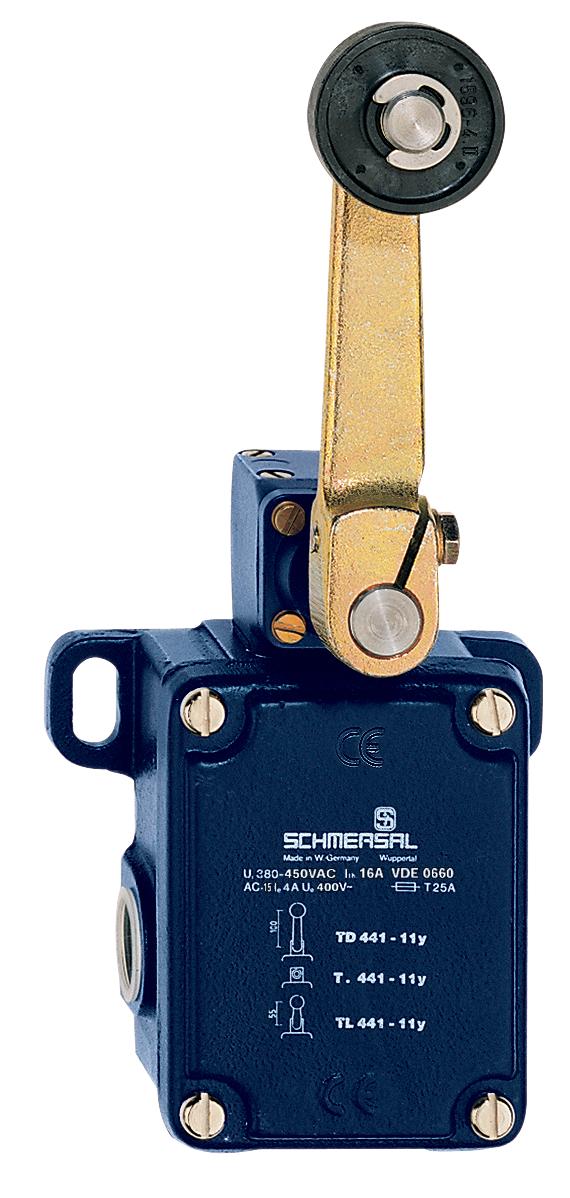

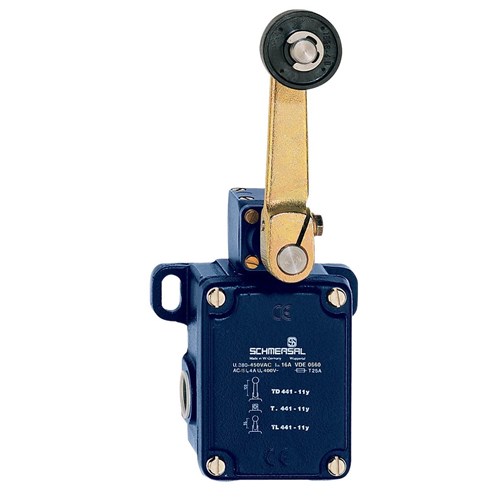

Discover the Schmersal 441 roller lever D position switch, a robust medium-duty sensor designed for precise monitoring and control in industrial settings. This metal-encased switch features a durable roller lever actuator and offers reliable switching with one normally open (NO) and one normally closed (NC) contact. Engineered for easy integration, it includes a snap-action switch element with screw connection terminals. Rated for AC-15 utilization, it can handle 4 A at 250 VAC and is equipped with two M20 x 1.5 cable entries. Operating within a temperature range of -30°C to +90°C, this position switch also boasts an IP65 rating according to IEC/EN 60529 standards, ensuring protection against dust ingress and water jets. Ideal for various applications within the Position Sensors category, trust in Schmersal's quality for your machinery safety requirements.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-10
eCl@ss Number, Version 9.0	27-37-12-05
ETIM 6.0	EC002593
ETIM 7.0	EC002635
Gross Weight (g)	31250
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	90
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	40
Minimum Temperature (°C)	-30
Net Weight (g)	255.94
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	91.5
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	1.5 A
Wire Cross-Section	0.5 mm
Working Principle	RFID
Brand	SCHMERSAL
Actuator Type	Angle roller lever
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	441 roller lever D
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 70
Terminal Type	Screw terminals M20 x 1.5
