Brand	SCHMERSAL
Actuator Type	Plunger
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
Contact Material	Silver
Degree of Protection	IP54
EAN	4030660000000
eCl@ss Number, Version 11.0	27-37-12-38
eCl@ss Number, Version 9.0	27-06-03-11
Enclosure Material	Aluminium
ETIM 6.0	EC002549
ETIM 7.0	EC002591
Gross Weight (g)	450
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Maximum Fuse Rating	6 A (slow blow)
Minimum Ambient Temperature (°C)	-30
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000000 Operations
Minimum Positive Break Force (N)	20
Net Weight (g)	50
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	27
Sensor Length (mm)	33
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-40 to 85
Switching Element	Opener (NC)
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical

Safety Pushbuttons & Operator Devices

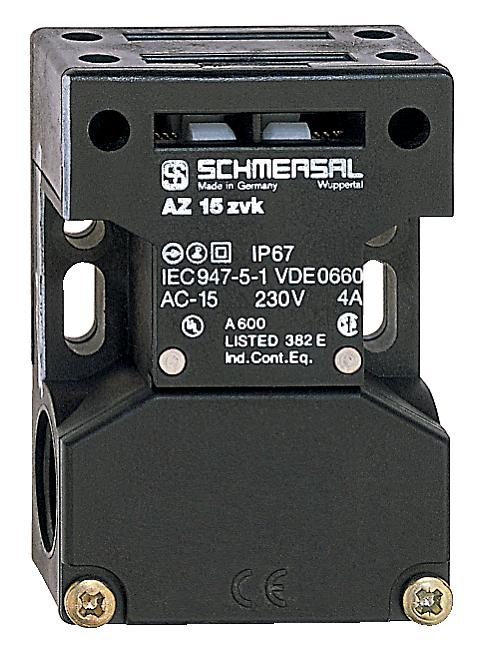

SCHMERSAL ENCLOSED SAFETY SWITCH 101157375
