Product Code: 101153903

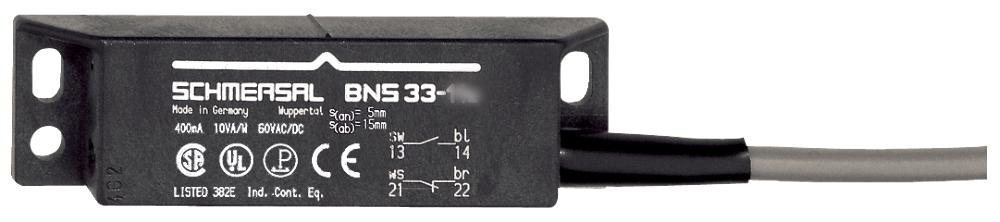

The Schmersal BNS33 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and magnetic actuation for reliable operation. This sensor requires an evaluation unit to function and features two openers and one shutter for versatile integration into various safety systems. With a lateral active area and a 2-meter cable terminal connector, it ensures easy installation. The sensor operates at a switching voltage of 120 VAC, with a current of 0.25 A and a switching capacity of 10 W, making it suitable for numerous industrial applications where precision and durability are paramount.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-44-01-02
eCl@ss Number, Version 9.0	27-06-03-11
ETIM 6.0	EC002549
ETIM 7.0	EC001029
Gross Weight (g)	32
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	16 A gG D-fuse
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	20
Net Weight (g)	35
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Nominal Output Current (A)	0.25
Nominal Power (W)	10
Rated Maximum Operational Voltage AC (V)	120
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	100
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	1.5 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller plunger
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	BNS33
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Screw terminals M20 x 1.5

Presence Sensing Safety Devices

SCHMERSAL BNS33-12Z-2363-2M SAFETY SENSOR 101153903
