Product Code: 101153619

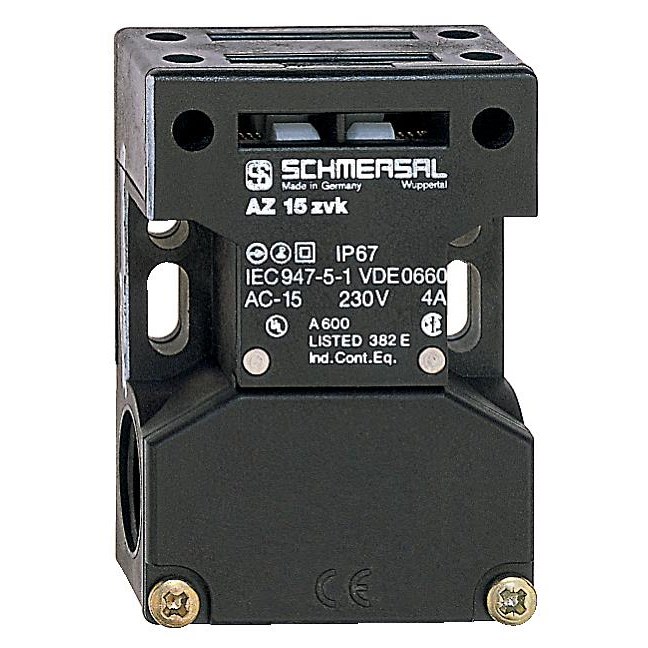

The Schmersal AZ15 safety switch is engineered for machine safety applications, particularly suitable for elevators. This robust switch features a thermoplastic enclosure and boasts a higher latching force to ensure secure locking. It comes with one safety contact and no auxiliary contacts, utilizing a screw connection terminal connector. The switching element is an opener (NC) with a thermal test current of 10 A. For reliable performance, it operates within utilisation categories AC-15 at 230 VAC, 4 A and DC-13 at 24 VDC, 4 A. Trust in the durability and precision of the AZ15 series for your safety-critical operations.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-06-03-11
eCl@ss Number, Version 9.0	27-37-12-43
ETIM 6.0	EC000809
ETIM 7.0	EC002593
Gross Weight (g)	1900
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	80
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-30
Net Weight (g)	35
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	100
Sensor Length (mm)	33
Switching Element	Normally open contact (NO)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	75
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Series	AZ15
Standards	EN IEC 61496-1 / EN IEC 61496-2 / CLC/TS 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5
