Product Code: 101152887

Ensure machine safety with the Schmersal AZ16 Series Safety Switch, featuring a robust thermoplastic enclosure and a separate actuator for reliable operation. This switch is designed to deliver an ejection force that ensures quick disconnection for safety. It includes one auxiliary contact and one safety contact, both with screw connection terminals for secure wiring. The switching element comprises both NO (normally open) and NC (normally closed) contacts to fit various circuit designs. With a thermal test current of 10 A, this safety switch can handle significant electrical loads. It operates efficiently within utilisation categories AC-15 at 230 VAC with a 4 A rating and DC-13 at 24 VDC also with a 4 A rating, making it versatile for different control voltage requirements. Engineered for machine safety applications, the Schmersal AZ16 Safety Switch is an essential component for any system requiring dependable protection mechanisms.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-37-12-43
eCl@ss Number, Version 9.0	27-37-14-03
ETIM 6.0	EC001029
ETIM 7.0	EC002593
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	240
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-30
Net Weight (g)	272.22
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	90
Sensor Length (mm)	38
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	AZ16
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	-40 to 85
Terminal Type	Screw terminals M20 x 1.5

Safety Pushbuttons & Operator Devices

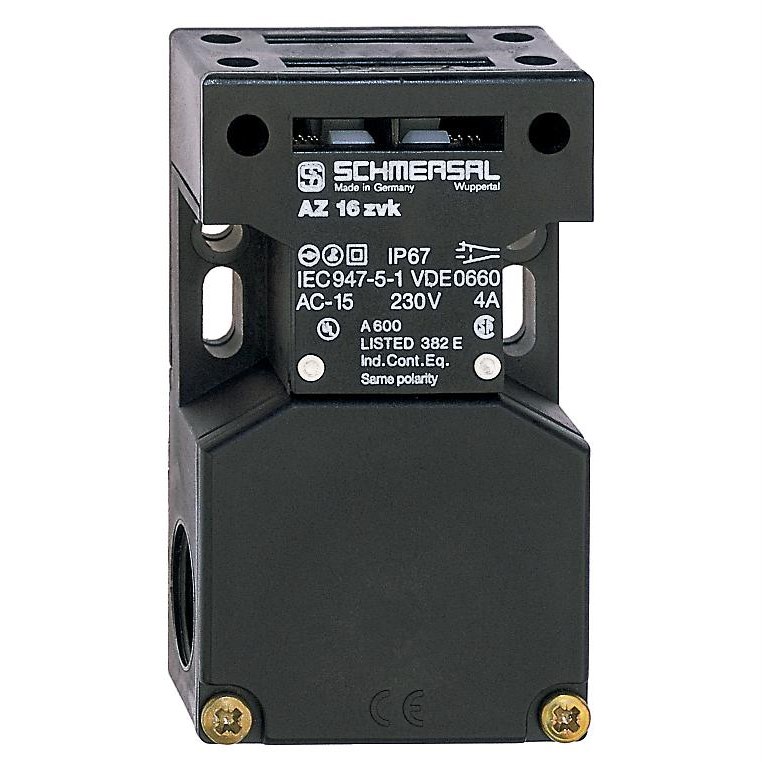

SCHMERSAL AZ16ZVK-M16 SAFETY SWITCH WITH SEPARATE ACTUATOR 101152887
