Product Code: 101152725

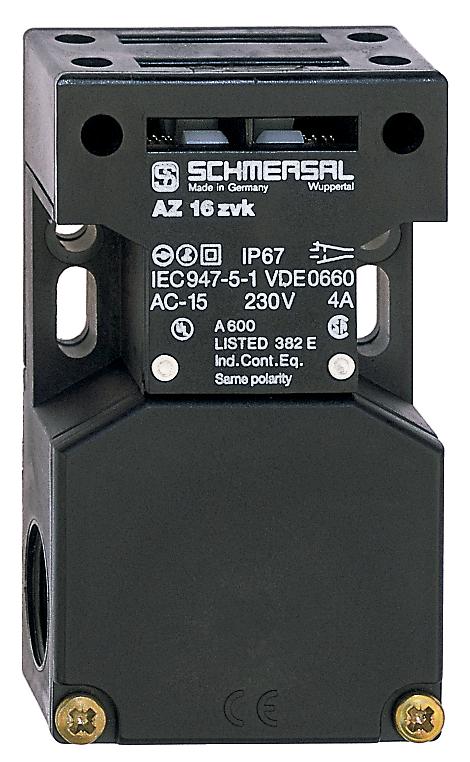

The Schmersal AZ16 Series safety switch is designed to enhance machine safety with its robust thermoplastic enclosure and separate actuator. This switch features an ejection force mechanism, one auxiliary contact, and two safety contacts. It offers reliable connectivity through its screw connection terminals and includes both NO and NC contact switching elements. With a thermal test current of 10 A, it operates efficiently under utilisation categories AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 4 A), making it a versatile choice for various applications. Ideal for engineers looking for dependable machine safety solutions, the AZ16 Series stands out in the Machine Safety category.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	23-13-01-03
ETIM 6.0	EC001029
ETIM 7.0	EC002593
Gross Weight (g)	90
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-30
Net Weight (g)	185
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	57.25
Switching Element	NC contact, NO contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.5 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Series	AZ16
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Connector plug M12, 8-pole, (A-coding)
