Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	23-13-01-03
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 6.0	EC000632
ETIM 7.0	EC001029
Gross Weight (g)	272.22
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	10 A gG D-fuse slow blow
Minimum Actuating Speed (mm/min)	1440
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	15
Net Weight (g)	214.97
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	71.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Angle roller lever
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 1.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Connector

Position Switches & Sensors

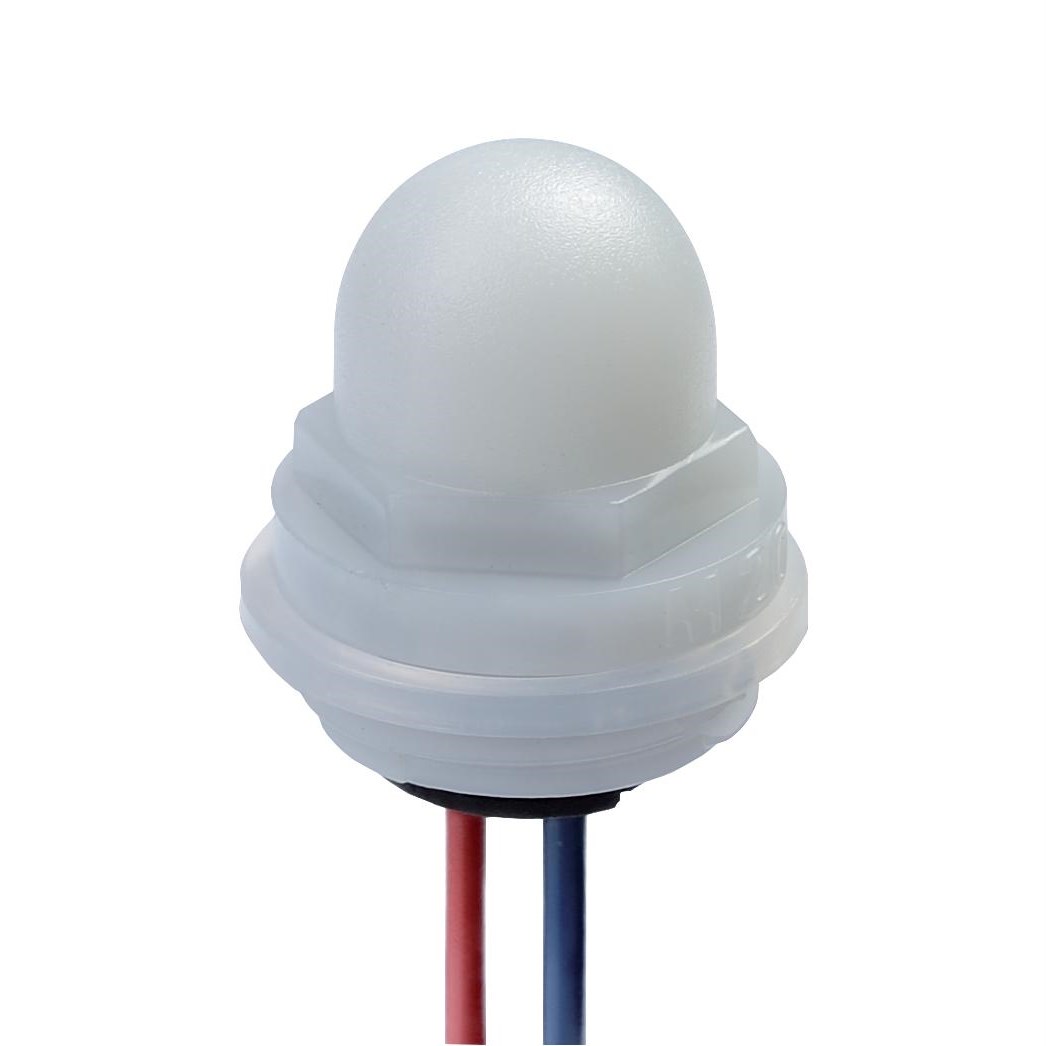

SCHMERSAL RED & GREEN LED INDICATOR LAMP G24-M20
