Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-38
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 6.0	EC002593
ETIM 7.0	EC000222
Gross Weight (g)	56.17
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	4 A gG D-fuse
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Net Weight (g)	441
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	46.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.5 mm
Working Principle	Mechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP54
EAN	4030660000000
Enclosure Material	Aluminium
Maximum Ambient Temperature (°C)	60
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	1000000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	-40 to 85
Terminal Type	Connector

Safety Pushbuttons & Operator Devices

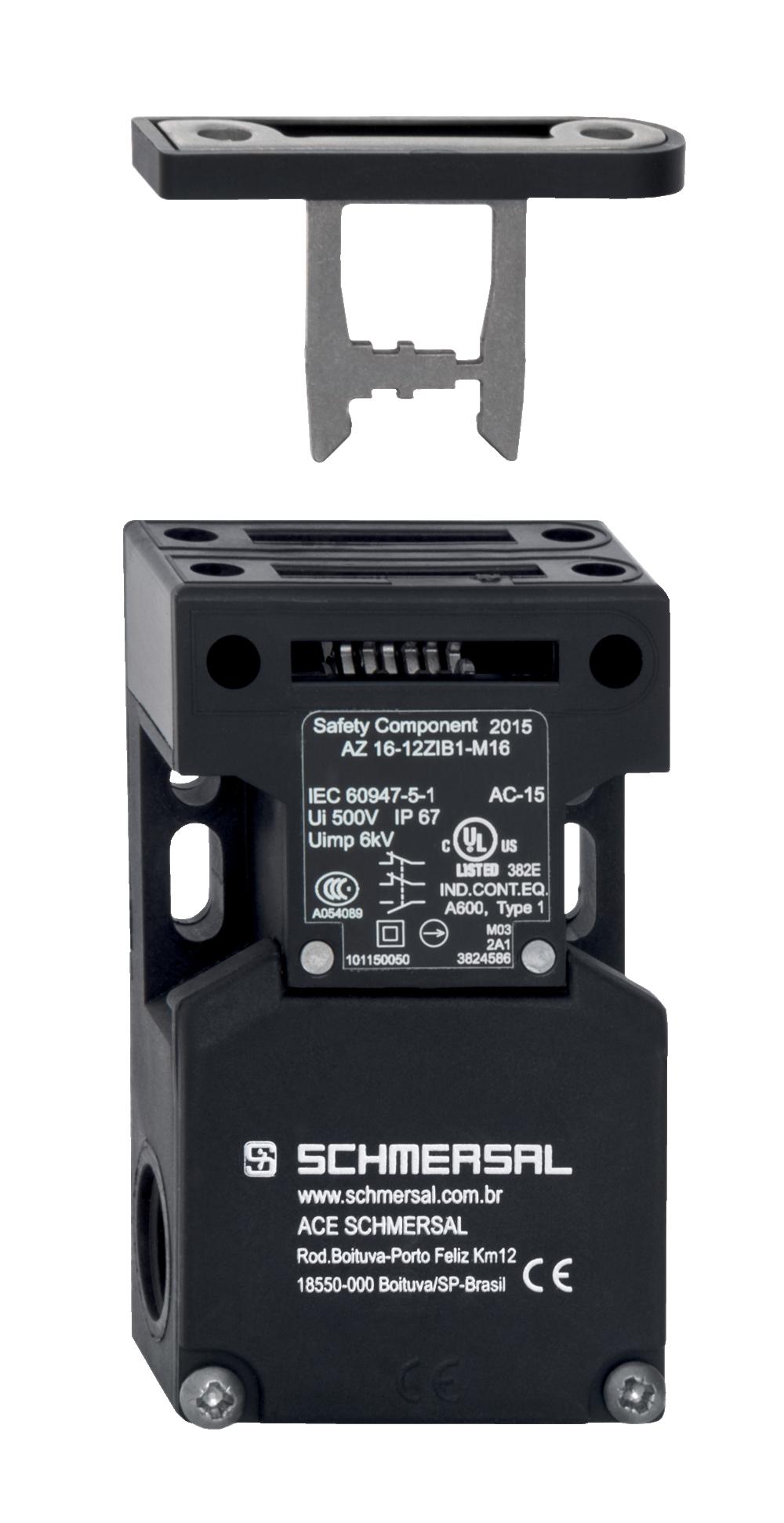

SCHMERSAL ENCLOSED SAFETY SWITCH 101150623
