Product Code: 101150050

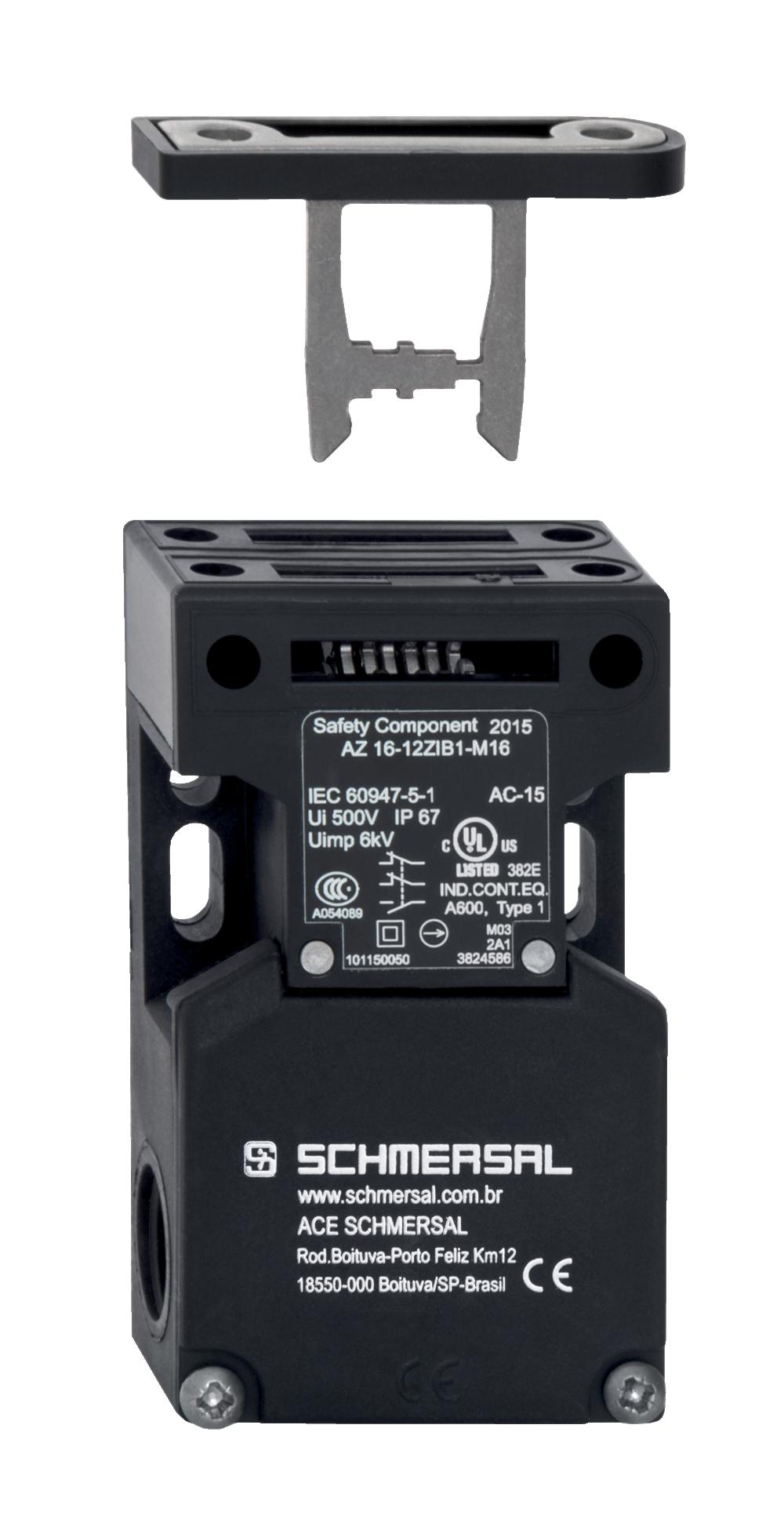

The Schmersal AZ16 Series safety switch is engineered for machine safety applications, featuring a robust thermoplastic enclosure and a separate actuator with a straight, rigid design. This switch is equipped with an ejection force mechanism, one auxiliary contact, and two safety contacts. It boasts an actuating radius of 250 mm and secure screw connection terminals. The switching elements include both NO and NC contacts. With a thermal test current of 10 A, it meets utilisation categories AC-15 at 230 VAC with a rated operational current of 4 A, and DC-13 at 24 VDC also with a rated operational current of 4 A. Designed to enhance the safety of your machinery, this switch is a reliable choice for ensuring secure operations.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-37-12-13
eCl@ss Number, Version 9.0	27-37-12-13
ETIM 6.0	EC000222
ETIM 7.0	EC000223
Gross Weight (g)	962.98
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-30
Net Weight (g)	35
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	15 / 11
Sensor Height (mm)	25
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	1.5 A
Utilisation Category DC-13	0.25 A
Wire Cross-Section	13 AWG
Working Principle	Optoelectronic
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	1000000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	400
Series	AZ16
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-40 to 85
Terminal Type	Connector
