Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-11
eCl@ss Number, Version 9.0	27-37-12-11
ETIM 6.0	EC000223
ETIM 7.0	EC001029
Gross Weight (g)	416
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	0.05
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Net Weight (g)	45.7
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	25
Sensor Length (mm)	44
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	11 AWG
Working Principle	Optoelectronic
Brand	SCHMERSAL
Actuator Type	Angle roller lever
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2 x 2.5
Minimum Cable Cross Section (mm²)	0.5
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 85
Terminal Type	Connector

Position Switches & Sensors

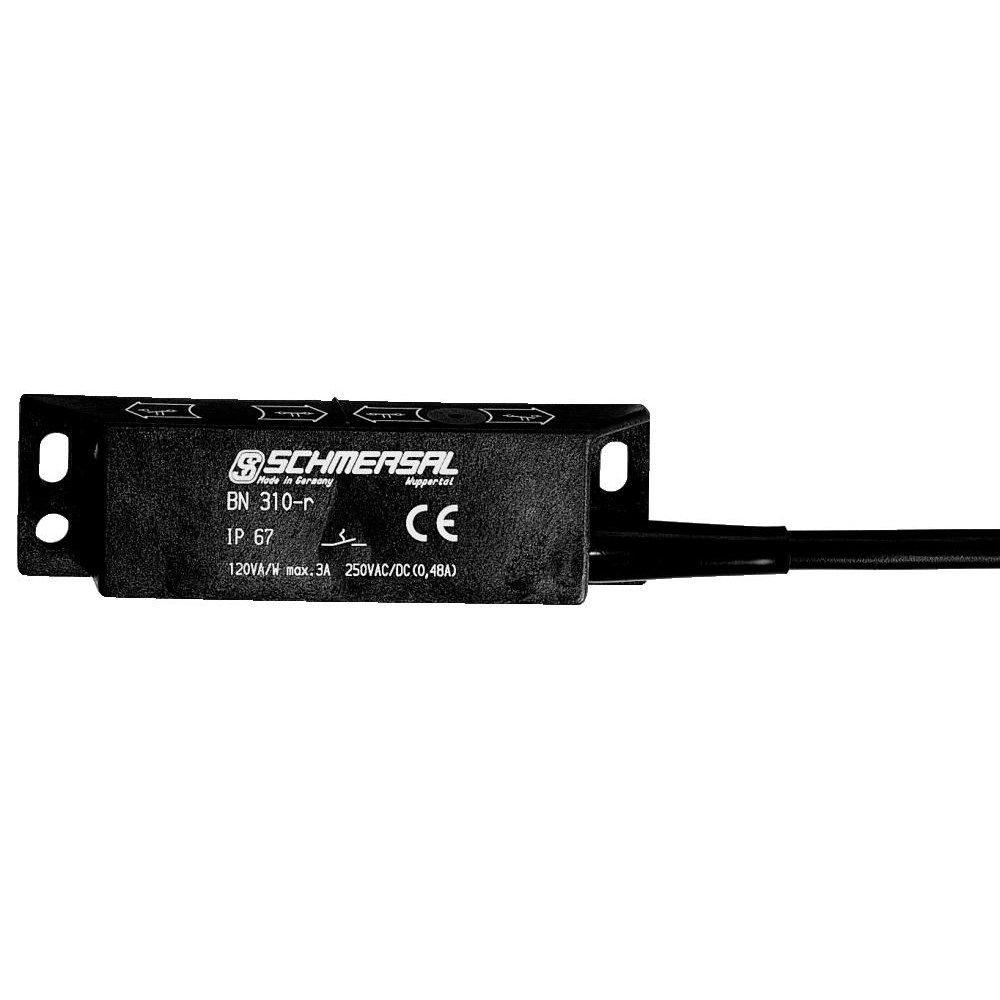

SCHMERSAL ENCLOSED MAGNETIC REEDSWITCH BN 310-10Z 10.0M
