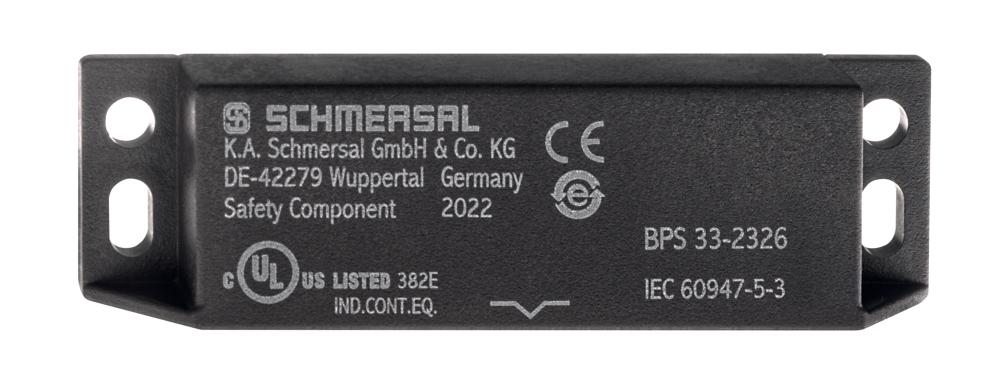

SCHMERSAL BPS33-2326 SAFETY SENSOR 101148482

Product Code: 101148482

Enhance your machine safety with the Schmersal BPS33 series safety sensors. These robust plastic-encased magnets ensure secure operation with an actuator length of 88 mm and a width of 25 mm. Ideal for engineers seeking reliable safety solutions in industrial settings, the BPS33 is a testament to Schmersal's commitment to superior machine safety technology.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
eCl@ss Number, Version 11.0 27-37-12-11
eCl@ss Number, Version 9.0 27-37-12-10
ETIM 6.0 EC000223
ETIM 7.0 EC001029
Gross Weight (g) 1900
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 0.05
Minimum Ambient Temperature (°C) -25
Minimum Positive Break Force (N) 15
Net Weight (g) 125
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 115
Sensor Length (mm) 38.5
Switching Element 1 NO contact, 1 NC contacts
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Wire Cross-Section 11 AWG
Working Principle Optoelectronic
Brand SCHMERSAL
Actuator Type Angle roller lever
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2 x 2.5
Minimum Cable Cross Section (mm²) 0.5
Minimum Mechanical Life 10000000 Operations
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 300
Series BPS33
Standards EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C) -25 to 70
Terminal Type Connector
