Product Code: 101147145

Ensure the safety and functionality of your machinery with the Schmersal AZ16 Series Safety Switch. This robust switch features a thermoplastic enclosure designed for durability, along with a separate actuator for enhanced security. It is equipped with two safety contacts and utilizes a screw connection terminal for reliable connectivity. The switching element is an opener (NC) that ensures fail-safe operation. With a thermal test current of 10 A, it can handle utilisation categories AC-15 at 230 VAC up to 4 A and DC-13 at 24 VDC up to 4 A, making it versatile for various applications in machine safety. Trust in the quality and precision engineering of Schmersal to keep your operations running smoothly and safely.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-01-05
eCl@ss Number, Version 9.0	27-37-12-13
ETIM 6.0	EC000222
ETIM 7.0	EC002593
Gross Weight (g)	356.67
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	80
Minimum Actuating Speed (mm/min)	10
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	17
Minimum Temperature (°C)	-30
Net Weight (g)	272.29
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	171.5
Sensor Length (mm)	21.5
Switching Element	1 NO contact, 1 NC contacts
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	75
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	AZ16
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-40 to 85
Terminal Type	Connector

Safety Pushbuttons & Operator Devices

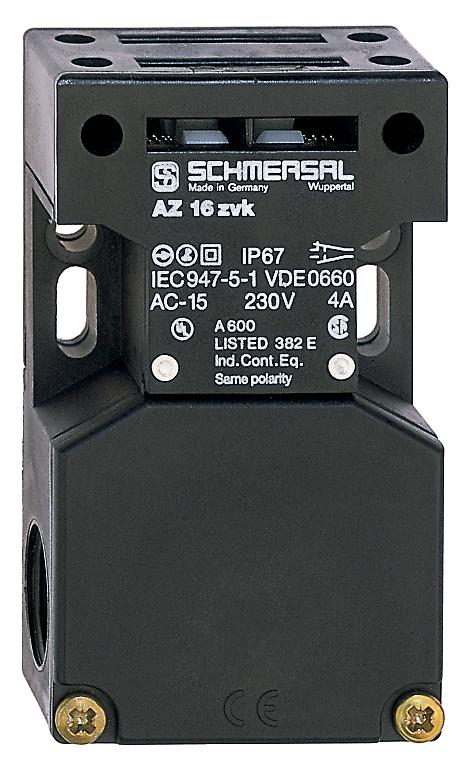

SCHMERSAL AZ16-02ZVRK-M16 SAFETY SWITCH WITH SEPARATE ACTUATOR 101147145
