Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-03
eCl@ss Number, Version 9.0	27-37-12-11
ETIM 6.0	EC001029
ETIM 7.0	EC000223
Gross Weight (g)	50
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A (slow blow)
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	0
Minimum Positive Break Force (N)	20
Net Weight (g)	9000
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	52
Sensor Length (mm)	46.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	13 AWG
Working Principle	Mechanical
Actuator Type	Pull strap
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Grey cast iron, galvanised
Maximum Ambient Temperature (°C)	90
Maximum Cable Cross Section (mm²)	1 x 1.0 , flexible
Minimum Cable Cross Section (mm²)	2 x 0.75
Minimum Mechanical Life	10000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	AZM161
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-25 to 70
Terminal Type	Screw terminals M20 x 1.5

Safety Interlocks

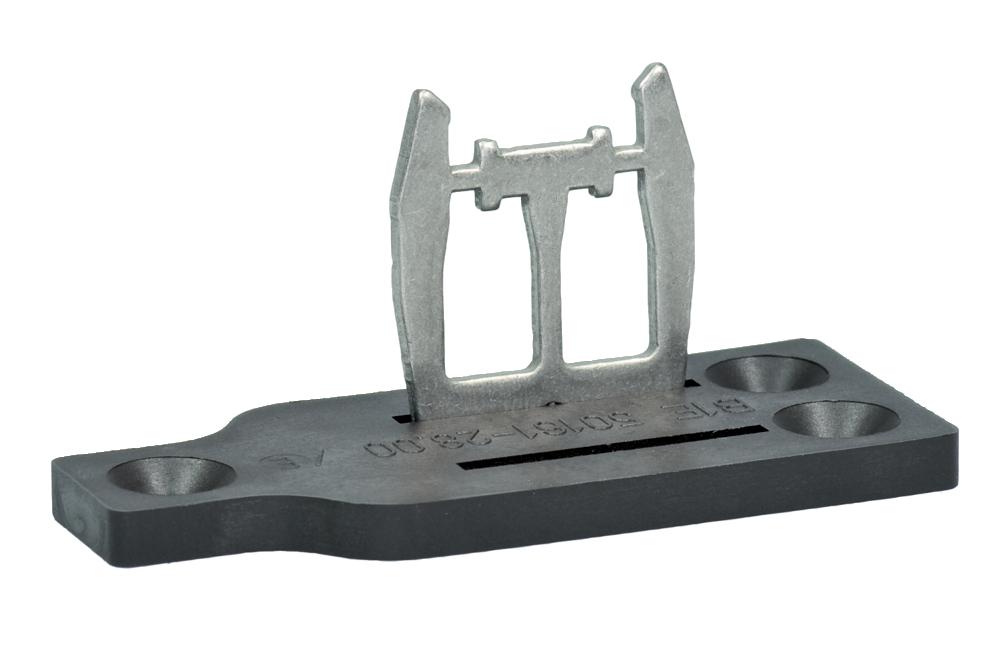

SCHMERSAL AZM 161-B1E SOLENOID INTERLOCK 101144416
