Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-37-12-11
eCl@ss Number, Version 9.0	27-37-12-12
ETIM 6.0	EC001038
ETIM 7.0	EC000221
Gross Weight (g)	30
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A gG D-fuse quick blow
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	15
Net Weight (g)	30
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	100.5
Sensor Length (mm)	46.5
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	2.5 A
Utilisation Category DC-13	1.5 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Pull strap
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Height (mm)	98
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	20000000 Operations
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	250
Series	AZM415
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-25 to 85
Terminal Type	Flat plug-in connector - 6.3 mm x 0.8 mm / 2 x 2.8 mm x 0.8 mm

Safety Interlocks

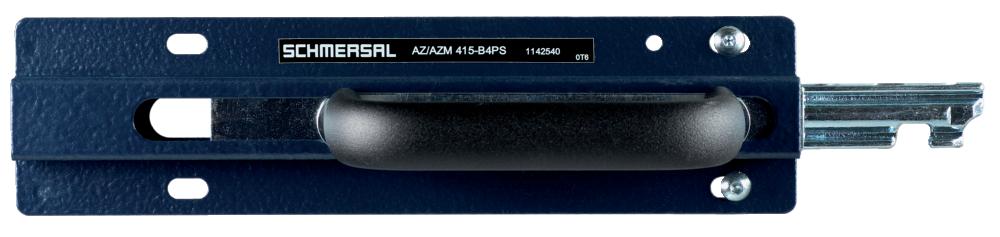

SCHMERSAL AZ/AZM 415-B4PS SOLENOID INTERLOCK 101142540
