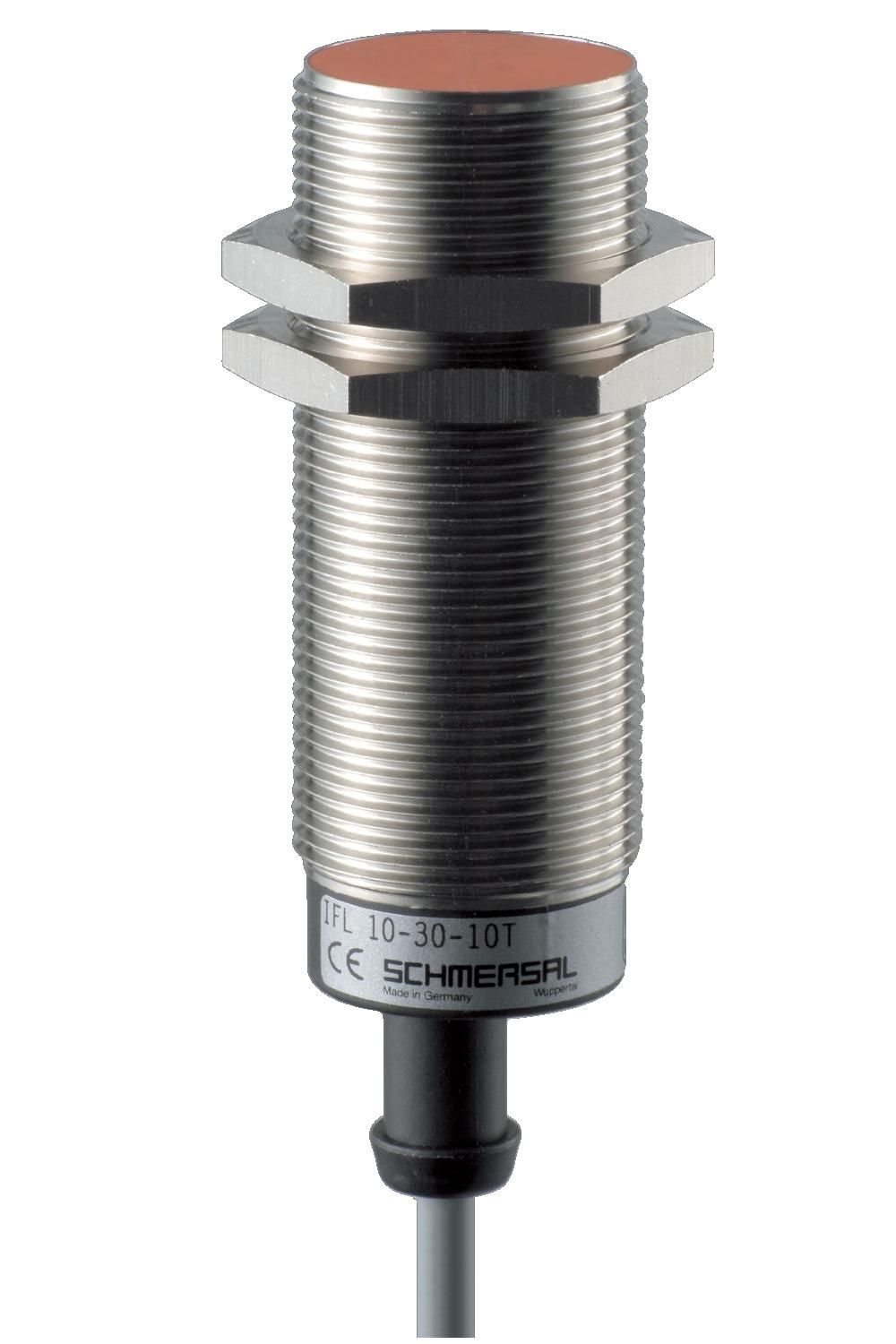

SCHMERSAL IFL10-30-10T INDUCTIVE PROXIMITY SWITCH 101141542

Product Code: 101141542

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust position sensor designed for precision and durability. This AC 2-wire, metal-encased sensor features a cylindrical M18 ISO thread design, ensuring easy integration into various industrial applications. With a reliable 10 mm sensing distance and NO contact switching element, it operates within a voltage range of 15 to 250VAC and can handle up to 500 mA. The device boasts a digital output of 4.5 V at 0.2 A with two-wire connection and is equipped with inductive interference protection for consistent performance. The switch's double insulation guarantees safety while its status indication provides real-time operational feedback. Engineered to withstand harsh conditions, it operates between -25°C to 70°C and meets IP67 standards according to IEC/EN 60530 for dust and water resistance. The H03VV-F connector cable ensures secure connections, while the switching frequency of 10 Hz caters to applications requiring moderate response times. Ideal for engineers seeking reliable position sensing solutions, the Schmersal IFL Series offers precision you can trust in demanding environments.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 High
eCl@ss Number, Version 11.0 27-37-12-11
eCl@ss Number, Version 9.0 27-37-12-10
ETIM 6.0 EC000221
ETIM 7.0 EC000223
Gross Weight (g) 80
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 4.5
Maximum Temperature (°C) 70
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -25
Minimum Positive Break Force (N) 15
Minimum Temperature (°C) -25
Net Weight (g) 30
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage AC (V) 250
Rated Minimum Operational Voltage AC (V) 15
Rated Operational Current (A) 0.5
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 75.5
Sensor Length (mm) 38
Switching Element Opener (NC)
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 1.5 A
Wire Cross-Section 13 AWG
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Roller lever H65
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Height (mm) 100
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 30000000 Operations
Mounting Type Threaded
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 250
Series IFL
Standards EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C) -25 to 85
Terminal Type Screw terminals M20 x 1.5
