Product Code: 101141020

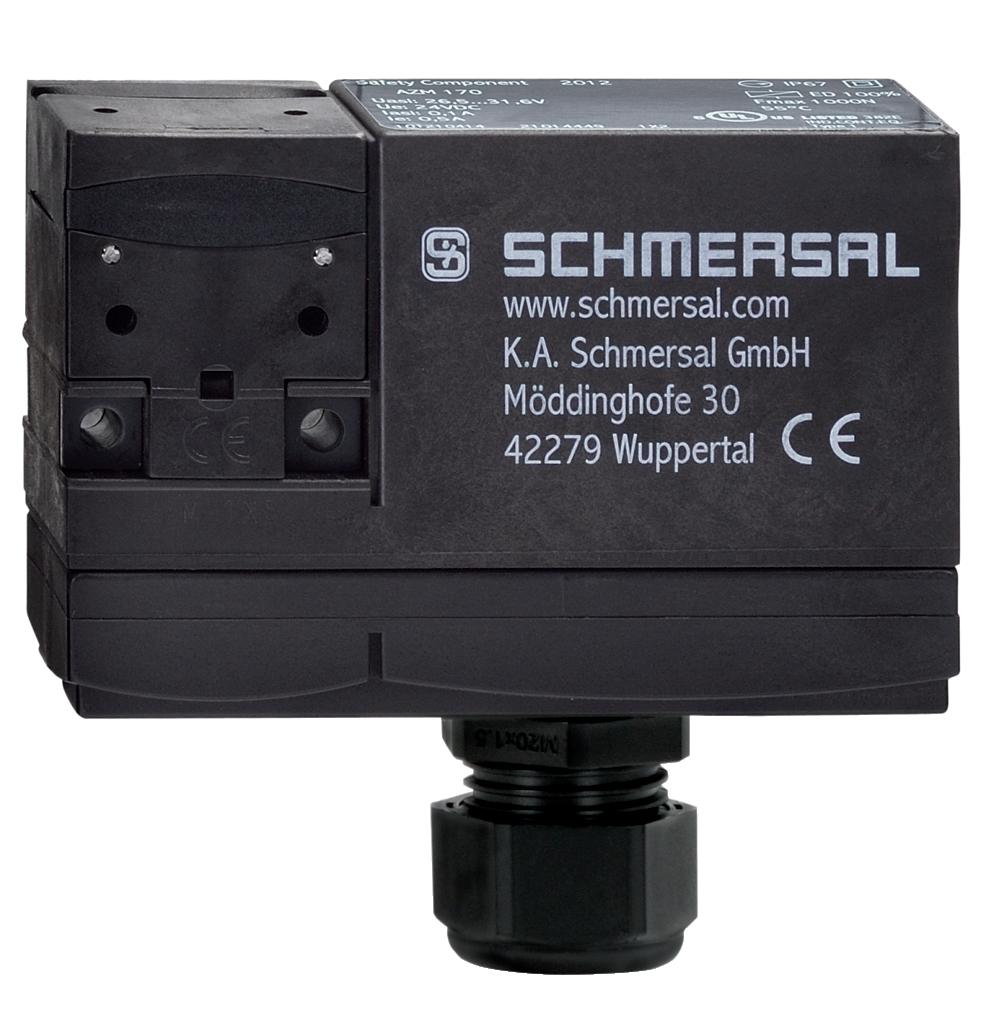

The Schmersal AZM170 series solenoid interlock is a robust machine safety component designed to ensure secure locking with power-to-lock functionality and a manual release option. This device features two actuating directions and is equipped with two safety contacts but does not include auxiliary contacts. It utilizes an IDC method for terminal connection, ensuring a reliable and efficient installation process. The opener is normally closed (NC), with a thermal test current of 6 A. Optimized for versatility, it operates on a rated control voltage of 24 VAC/DC and meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. Engineered for demanding applications, this solenoid interlock is part of Schmersal's commitment to advanced machine safety solutions.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-37-14-04
ETIM 6.0	EC002593
ETIM 7.0	EC002033
Gross Weight (g)	30
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Actuating Speed (mm/min)	600
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	15
Minimum Temperature (°C)	-25
Net Weight (g)	370.99
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	25
Sensor Length (mm)	36
Switching Element	Opener (NC)
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	1.5 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Brass
Height (mm)	100
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1 x 0.75
Minimum Mechanical Life	20000000 Operations
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Series	AZM170
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5
