Product Code: 101140788

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking and manual release functionality. This device features two actuating directions, along with one auxiliary contact and one safety contact for comprehensive control. It employs an IDC terminal connector for reliable termination, and includes both NO and NC contacts. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. Ideal for engineers seeking dependable interlocking mechanisms within their machinery's safety systems.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	High
eCl@ss Number, Version 11.0	27-27-06-07
eCl@ss Number, Version 9.0	27-27-06-09
ETIM 6.0	EC002591
ETIM 7.0	EC002544
Gross Weight (g)	1144.8
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Actuating Speed (mm/min)	4122
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Minimum Temperature (°C)	-25
Net Weight (g)	1180
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	25
Sensor Length (mm)	31
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	2.5 A
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Brass
Height (mm)	75
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	5000000 Operations
Mounting Type	A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Series	AZM170
Standards	EN IEC 60947-5-1 / EN ISO 14119 / BG-GS-ET-15
Storage Temperature (°C)	-25 to 85
Terminal Type	Screw terminals M20 x 1.5

Safety Interlocks

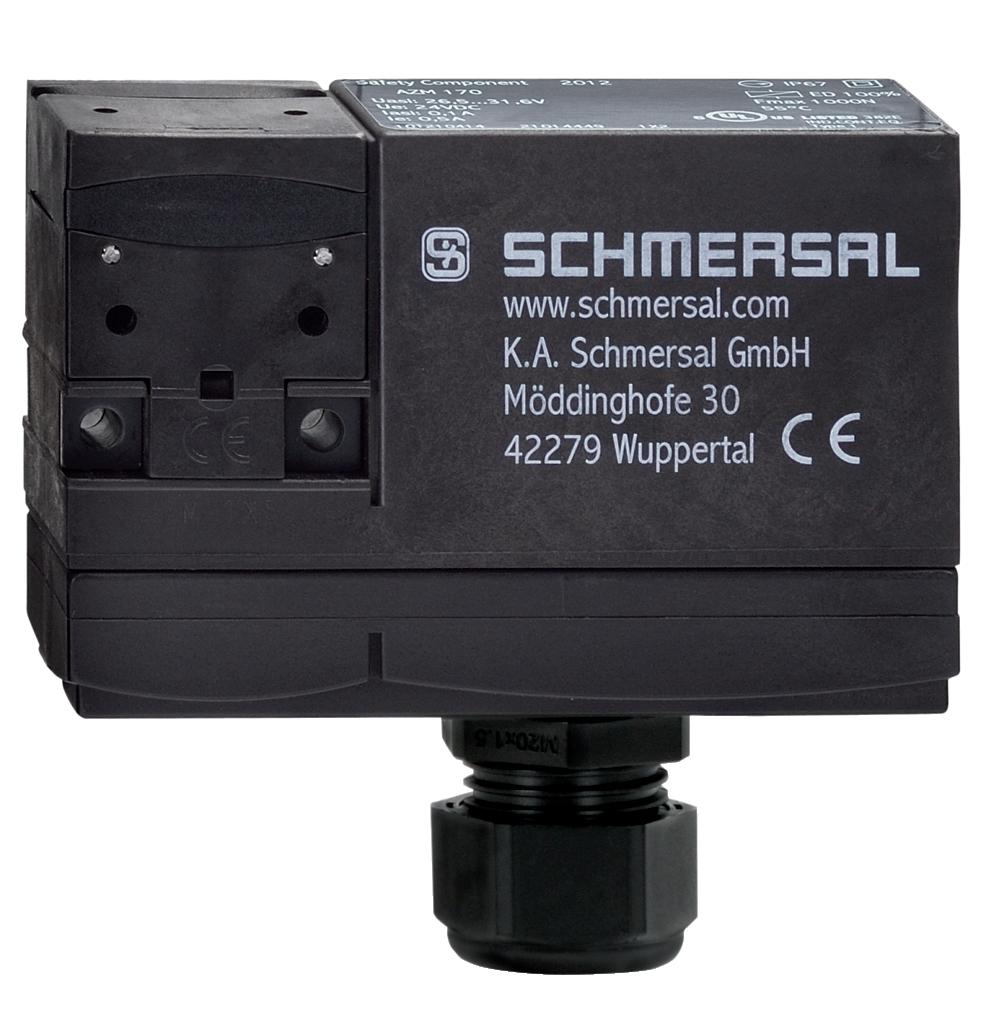

SCHMERSAL AZM170-11ZRK-24VAC/DC SOLENOID INTERLOCK 101140788
