Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-24-02
eCl@ss Number, Version 9.0	27-27-24-04
ETIM 6.0	EC002544
ETIM 7.0	EC001487
Gross Weight (g)	40
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	0.3
Maximum Fuse Rating	6 A gG D-fuse quick blow
Minimum Actuating Speed (mm/min)	1
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	70
Net Weight (g)	25
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	121.5
Sensor Length (mm)	30
Switching Element	Opener (NC)
Switching Principle	Slow action
Thermal Test Current (A)	25
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	0.5 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67 / IP69K
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Height (mm)	28
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	2 x M5, Cylinder head screw
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Storage Temperature (°C)	-25 to 85
Terminal Type	Connector
Width (mm)	40

Presence Sensing Safety Devices

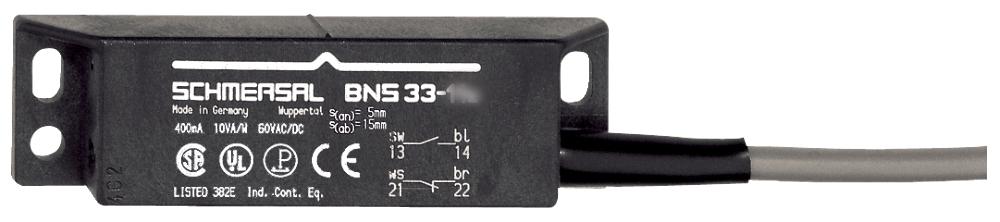

SCHMERSAL NON-CONTACT MAGNETIC SAFETY SENSOR 101137364
