Product Code: 101136319

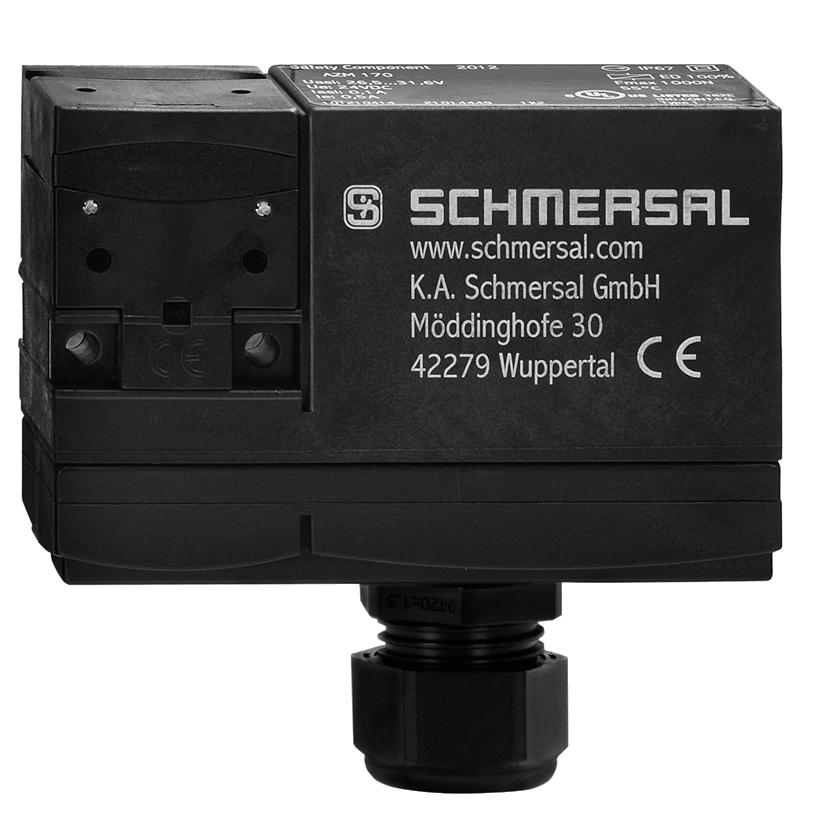

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking with a manual release option. This device features two actuating directions and includes one auxiliary contact as well as one safety contact. It employs an IDC method for terminal connection, ensuring reliable installation with both normally open (NO) and normally closed (NC) contacts. With a thermal test current of 6 A and a rated control voltage of 230 VAC, it meets utilisation category AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A standards. Ideal for engineers seeking dependable safety interlocks in their machinery control systems.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-12
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC001487
ETIM 7.0	EC001487
Gross Weight (g)	36
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse quick blow
Maximum Temperature (°C)	60
Minimum Actuating Speed (mm/min)	160
Minimum Ambient Temperature (°C)	-15
Minimum Positive Break Force (N)	15
Minimum Temperature (°C)	-25
Net Weight (g)	36
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	181
Sensor Length (mm)	44
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	25
Utilisation Category	DC-13 \| AC-15
Wire Cross-Section	13 AWG
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Height (mm)	98
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	Mounting flange
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	AZM170
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Storage Temperature (°C)	-25 to 70
Terminal Type	Connector
Width (mm)	40

Safety Interlocks

SCHMERSAL AZM170-11ZRKA-230VAC SOLENOID INTERLOCK 101136319

Product Code: 101136319
