Product Code: 101133009

Enhance your machine safety with the Schmersal BNS180 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor ensures secure operations with its coding feature and a prerequisite evaluation unit. It comes equipped with two safety contacts and is activated by a magnet, making it suitable for applications requiring dual openers without the need for shutters or semi-conductor outputs. The M18 ISO thread sensor connects via cable and operates at a switching voltage of 100 V AC/DC, with a current of 0.25 A and a capacity of 3 W. Trust in Schmersal's commitment to safety for your machinery requirements.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-34-92
eCl@ss Number, Version 9.0	27-27-26-06
ETIM 6.0	EC002592
ETIM 7.0	EC001029
Gross Weight (g)	180
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Actuating Speed (mm/min)	160
Minimum Ambient Temperature (°C)	-30
Minimum Positive Break Force (N)	19
Minimum Temperature (°C)	-25
Net Weight (g)	25
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Nominal Output Current (A)	0.25
Nominal Power (W)	3
Protection Class of Operating Resource	3
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	89.5
Sensor Length (mm)	38
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Thermal Test Current (A)	16
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	13 AWG
Working Principle	Mechanical
Actuator Type	Magnet
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Metal, zinc die-cast
Height (mm)	11
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Mounting Type	Snaps onto standard DIN rail to EN 60715
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Series	BNS180
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Connector
Width (mm)	67.5

Presence Sensing Safety Devices

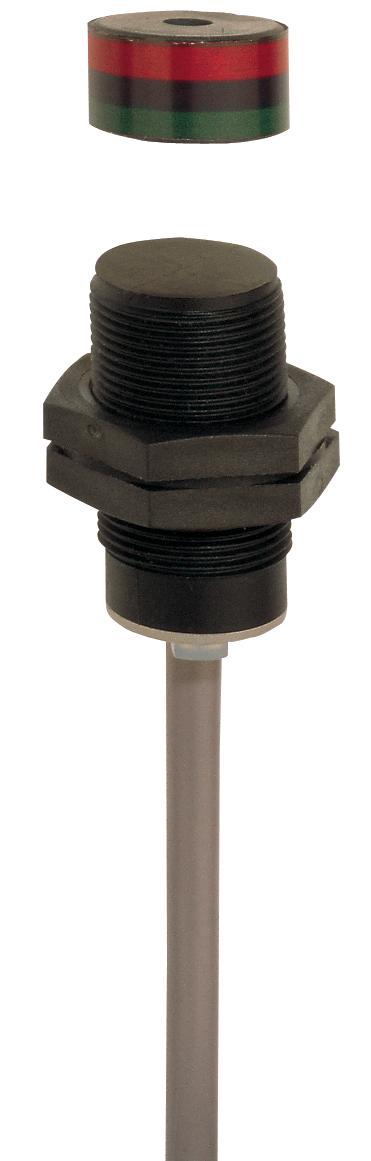

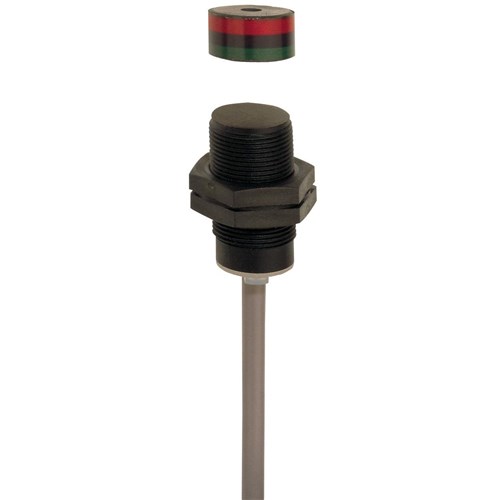

SCHMERSAL BNS180-02Z SAFETY SENSOR 101133009
