Product Code: 101128296

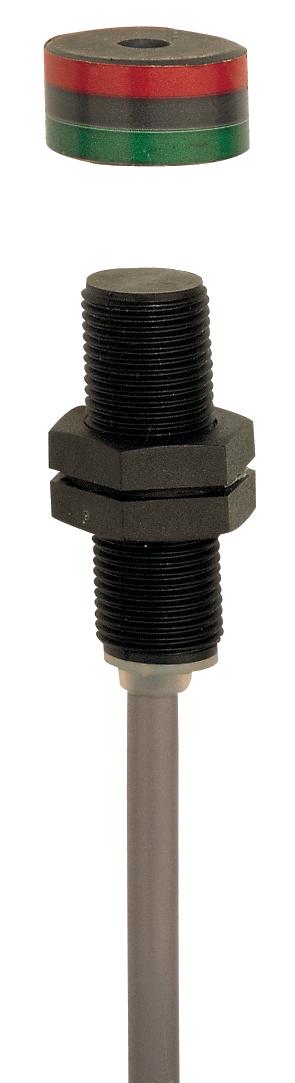

Enhance your machine safety with the Schmersal BNS120 series safety sensor. This robust device features a thermoplastic enclosure and a magnetic actuating element for reliable operation. Designed with an M12 ISO thread, it easily integrates into your system. The sensor comes equipped with a 1-meter cable for convenient installation. It boasts two safety contacts and is capable of switching up to 100 V AC/DC at 0.25 A with a switching capacity of 3 W. With one opener and one shutter, this safety sensor is an essential component for any safety-conscious engineering project.

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-37-12-43
eCl@ss Number, Version 9.0	27-37-12-11
ETIM 6.0	EC000223
ETIM 7.0	EC002714
Gross Weight (g)	45
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	1
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	70
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	8.5
Minimum Temperature (°C)	-25
Net Weight (g)	50
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Nominal Output Current (A)	0.25
Nominal Power (W)	3
Rated Maximum Operational Voltage AC (V)	100
Rated Maximum Operational Voltage DC (V)	100
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	110.5
Sensor Length (mm)	24
Switching Element	NC contact, NO contact
Switching Principle	slow action, positive break NC contact
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.25 mm
Working Principle	Mechanical
Brand	SCHMERSAL
Actuator Type	Magnet
Contact Material	Silver-plated Cu rivets
Degree of Protection	IP67
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Light alloy die-casting
Height (mm)	100
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Mounting Type	Snaps onto standard DIN rail to EN 60715
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	BNS120
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 70
Terminal Type	Connector
Width (mm)	45

Presence Sensing Safety Devices

SCHMERSAL BNS120-11Z SAFETY SENSOR 101128296
