Product Code: 101124743

Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
eCl@ss Number, Version 11.0	27-27-26-03
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	23
Housing Construction Form	Norm construction design
Installation Conditions	Not flush
Maximum Actuating Speed (m/s)	0.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Actuating Speed (mm/min)	60
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	20
Net Weight (g)	3
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Protection Class of Operating Resource	3
Rated Short-circuit Current (A)	1000
Recommended Safety Switchgear	PROTECT PSC1 \| SRB-E-301ST \| SRB-E-201LC
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	91.5
Sensor Length (mm)	38
Switching Element	1 NO contact, 2 NC contacts
Switching Principle	Slow action
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.05 A
Wire Cross-Section	0.25 mm
Working Principle	Electromechanical
Brand	SCHMERSAL
Actuator Type	Roller lever
Contact Material	Silver-nickel alloy 10
Degree of Protection	IP65
EAN	4030660000000
Enclosure Coating Material	Painted
Enclosure Material	Glass-fibre, reinforced thermoplastic
Height (mm)	14
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Mounting Type	Rear with 2 threaded bolts
Overvoltage Category	3
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	25 to 85
Terminal Type	Connector
Width (mm)	45

Presence Sensing Safety Devices

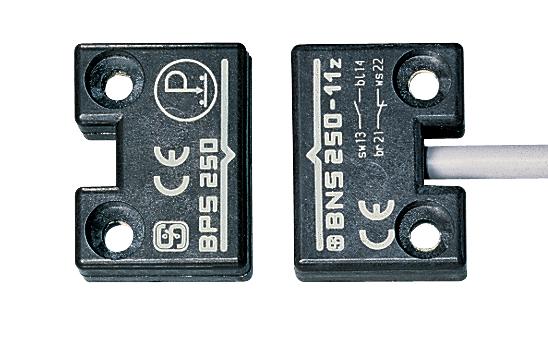

SCHMERSAL MAGNETIC SAFETY SENSOR 1NC+1NO 101124743

Product Code: 101124743
