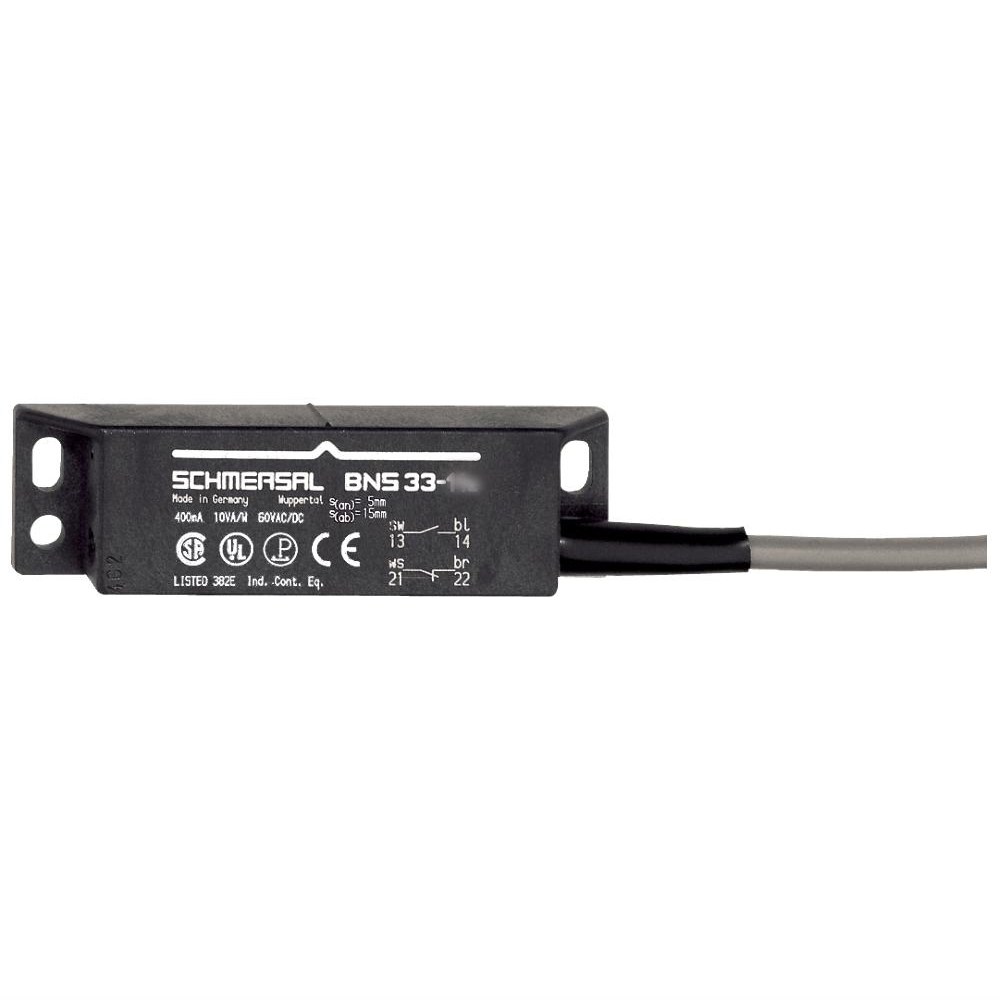

Schmersal 101109211 Magnetic Safety Sensor 1m Cable

Product Code: 101109211

  • Operates at 100 VAC, 0.4 A, and 10 W
  • Durable with 25 million mechanical cycles
  • Compact sensor: 13x88x25 mm
  • IP67 protection for harsh environments
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series BNS33
Actuating Element Magnet
Actuator Type Magnet
Cable Length 1 m
Contact Material Silver
Degree of Protection IP67
Enclosure Coating Material Painted
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Quasi-flush
Mechanical Life 25000000 Cycles
Mounting Type Can be clipped into standard rail
Operational Temperature -25 to 70 deg C
Overvoltage Category 3
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 13 mm L x 88 mm W x 25 mm H
Standards and Approvals EN ISO 13849-1
Terminal Type Flat plug-in connector - 6.3 mm x 0.8 mm / 2 x 2.8 mm x 0.8 mm
Vibration Resistance 10-55 Hz
Weight 62 g
Wire Size 0.25 sq-mm

Description

<p>In the demanding world of industrial and commercial applications, choosing equipment that meets rigorous standards while ensuring reliability is crucial. This product stands out for its robust design and adherence to industry standards, making it a dependable choice for professionals in need of precision and durability.</p><p>Operating at a rated voltage of 100 VAC with a current rating of 0.4 A, this device delivers a consistent power output of 10 W. Its operational efficiency is optimized by its ability to function effectively within a frequency range starting from as low as 5 Hz. This makes it versatile across various applications where specific power requirements are essential.</p><p>Durability is one of the key features, with an impressive mechanical life expectancy reaching up to 25 million cycles. Such longevity ensures that once installed, maintenance concerns are minimized over extended periods, providing peace of mind in critical operations.</p><p>The housing material made from glass fibre reinforced thermoplastic enhances the product&amp;#39;s resilience against harsh environments. With an IP67 degree of protection, it is safeguarded against dust ingress and can withstand temporary immersion in water—ideal for settings where exposure to environmental elements cannot be avoided.</p><p>Temperature fluctuations are often challenging; however, this product operates seamlessly between -25 to 70 degrees Celsius. This broad operational temperature range ensures reliable performance even under extreme conditions.</p><p>Compliance with EN ISO 13849-1 standards highlights its commitment to safety and quality assurance—a non-negotiable aspect when integrating components into larger systems or networks.</p><p>Weighing just 62 grams and featuring compact dimensions (13 mm L x 88 mm W x 25 mm H), this sensor fits effortlessly into tight spaces without adding unnecessary weight or bulk. The actuating element utilizes a magnet mechanism known for precise activation capabilities.</p><p>Installation flexibility is supported by a cable length of one meter paired with wire sizing at 0.25 square millimeters—adequate for most standard setups while maintaining signal integrity throughout operation.</p><p>Additionally, vibration resistance ranging from frequencies between 10-55 Hz further underscores its robustness in dynamic environments where stability is paramount.</p><p>This product offers technical excellence combined with practical features designed specifically for those who demand reliability without compromise in their electrical engineering tasks or automation projects.</p>
