Cable Note |
All indications including the conductor ferrules. |
|
Coding Level According to EN ISO 14119 |
High |
|
Design of Control Element |
p-type |
|
eCl@ss Number, Version 11.0 |
27-20-10-01 |
|
eCl@ss Number, Version 9.0 |
27-20-10-01 |
|
ETIM 6.0 |
EC001449 |
|
ETIM 7.0 |
EC000030 |
|
Gross Weight (g) |
600 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Quasi-flush |
|
Latching Force (N) |
40 |
|
Maximum Actuating Speed (m/s) |
2 |
|
Maximum Bounce Duration (ms) |
5 |
|
Maximum Fuse Rating |
6 A gG D-fuse |
|
Maximum Switching Capacity (W) |
0.24 |
|
Minimum Actuating Force (N) |
9 |
|
Minimum Actuating Speed (mm/min) |
1440 |
|
Minimum Ambient Temperature (°C) |
-25 |
|
Minimum Positive Break Force (N) |
19 |
|
Net Weight (g) |
22.641 |
|
No. of Actuating Directions |
3 |
|
No. of Auxiliary Contacts |
1 |
|
No. of Safety Contacts |
2 |
|
Positive Break Travel (mm) |
11 |
|
Protection Class of Operating Resource |
2 |
|
Rated Operating Current (mA) |
700 |
|
Rated Short-circuit Current (A) |
400 |
|

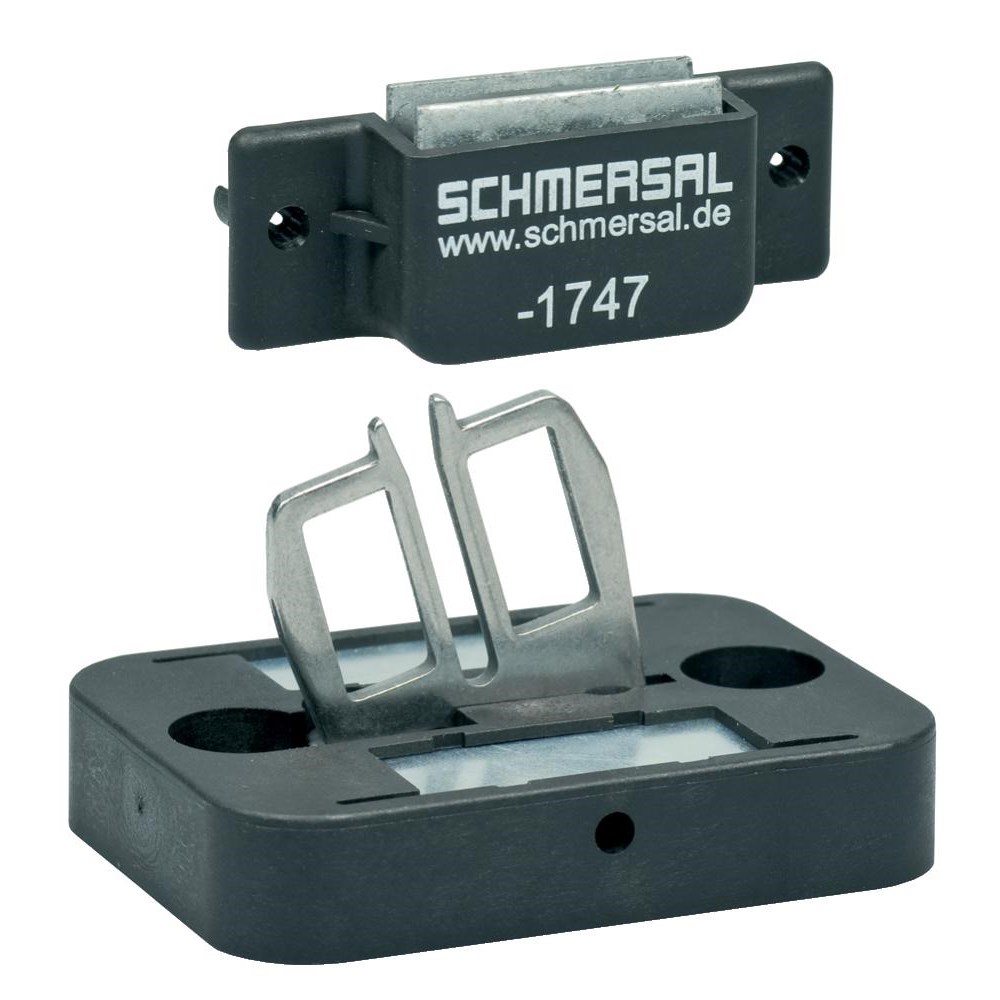

Recommended Actuator |
AZ/AZM201-B1 | AZ/AZM201-B30 |
|
Recommended Safety Switchgear |
SRB-E-301ST | SRB-E-201LC |
|
Resistance to Shock (g/ms) |
30 / 11 |
|
Sensor Height (mm) |
92.5 |
|
Sensor Length (mm) |
33 |
|
Switching Element |
NO contact, NC contact |
|
Switching Principle |
Slow action |
|
Utilisation Category |
DC-13 | AC-15 |
|
Utilisation Category DC-13 |
0.25 A |
|
Wire Cross-Section |
0.25 mm |
|
Working Principle |
Mechanical |
|
Brand |
SCHMERSAL |
|
Actuator Type |
Offset roller lever |
|
Cable Length (m) |
1 |
|
Contact Material |
Silver |
|
Degree of Protection |
IP66 / IP67 |
|
Depth (mm) |
121 |
|
EAN |
4030660000000 |
|
Enclosure Coating Material |
Painted |
|
Enclosure Material |
Glass-fibre, reinforced thermoplastic |
|
Height (mm) |
80 |
|
Maximum Ambient Temperature (°C) |
120 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Minimum Cable Cross Section (mm²) |
1.5 |
|
Minimum Mechanical Life |
100000 Operations |
|
Mounting Type |
Screws |
|
No. of Normally-open Contacts |
1 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
3 |
|
Rated Impulse Withstand Voltage (kV) |
4 |
|
Rated Insulation Voltage (V) |
300 |
|
Series |
AZ15/16 |
|
Standards |
EN IEC 60947-5-1 |
|
Storage Temperature (°C) |
-40 to 85 |
|
Terminal Type |
Screw terminals M20 x 1.5 |
|
Width (mm) |
165 |
