Brand	SCHMERSAL
Current for Voltage Drop (A)	0.2
Installation Conditions	Not Flush
Maximum Voltage Drop (V)	1.2
Minimum Ambient Temperature (°C)	-25
Minimum Operational Voltage (V)	10
No. of Cables	3
Rated Operational Current (mA)	200
Sensor Length (mm)	45.6
Switching Element	NO Contact
Switching Frequency (Hz)	500
Termination	Connector M12
Degree of Protection	IP67
Enclosure Coating Material	Nickel-plated
Housing Material	Brass
Maximum Ambient Temperature (°C)	70
Maximum Operational Voltage (V)	30
Standards and Approvals	EN IEC 60947-5-2

Position Switches & Sensors

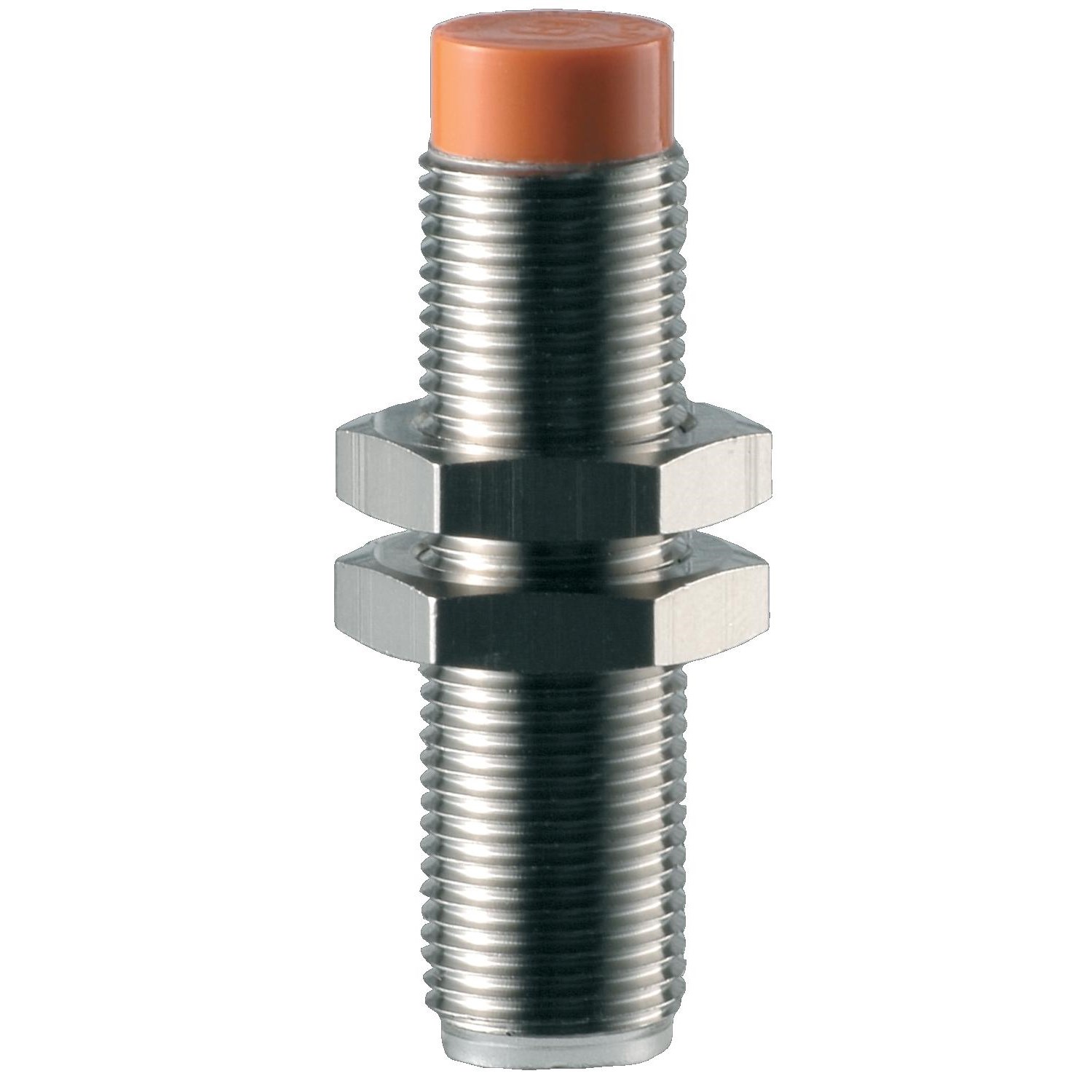

SCHMERSAL IFL 4-12M-10STPINDUCTIVE PROXIMITY SWITCH 101086912
