Switching Principle	Snap action
Utilisation Category	AC-15: 400 V / 4 A
Brand	SCHMERSAL
Ambient Temperature Range (°C)	-30 to +90
Cable Cross Section (mm²)	2.5 Max.
Contact Material	Silver
Conventional Thermal Current - Ithe (A)	16
Degree of Protection	IP67
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Reference No.	M. 250-22Z-1224
Standards	EN IEC 60947-5-1

Position Switches & Sensors

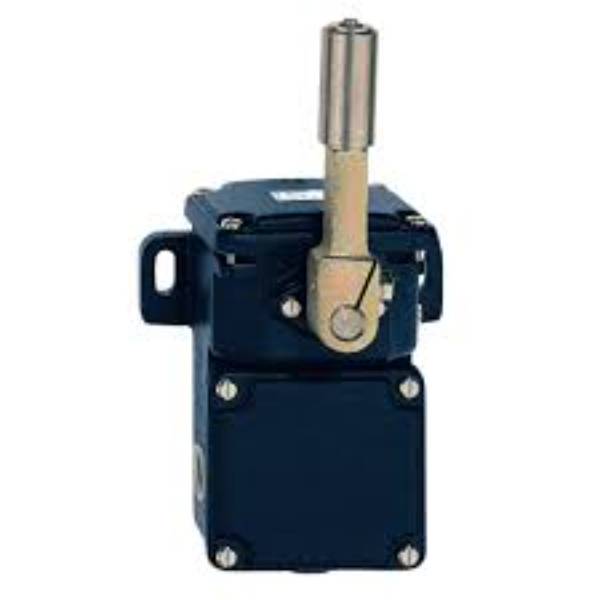

SCHMERSAL ENCLOSED BELT ALIGNMENT SWITCH M. 250-22Z-1224
