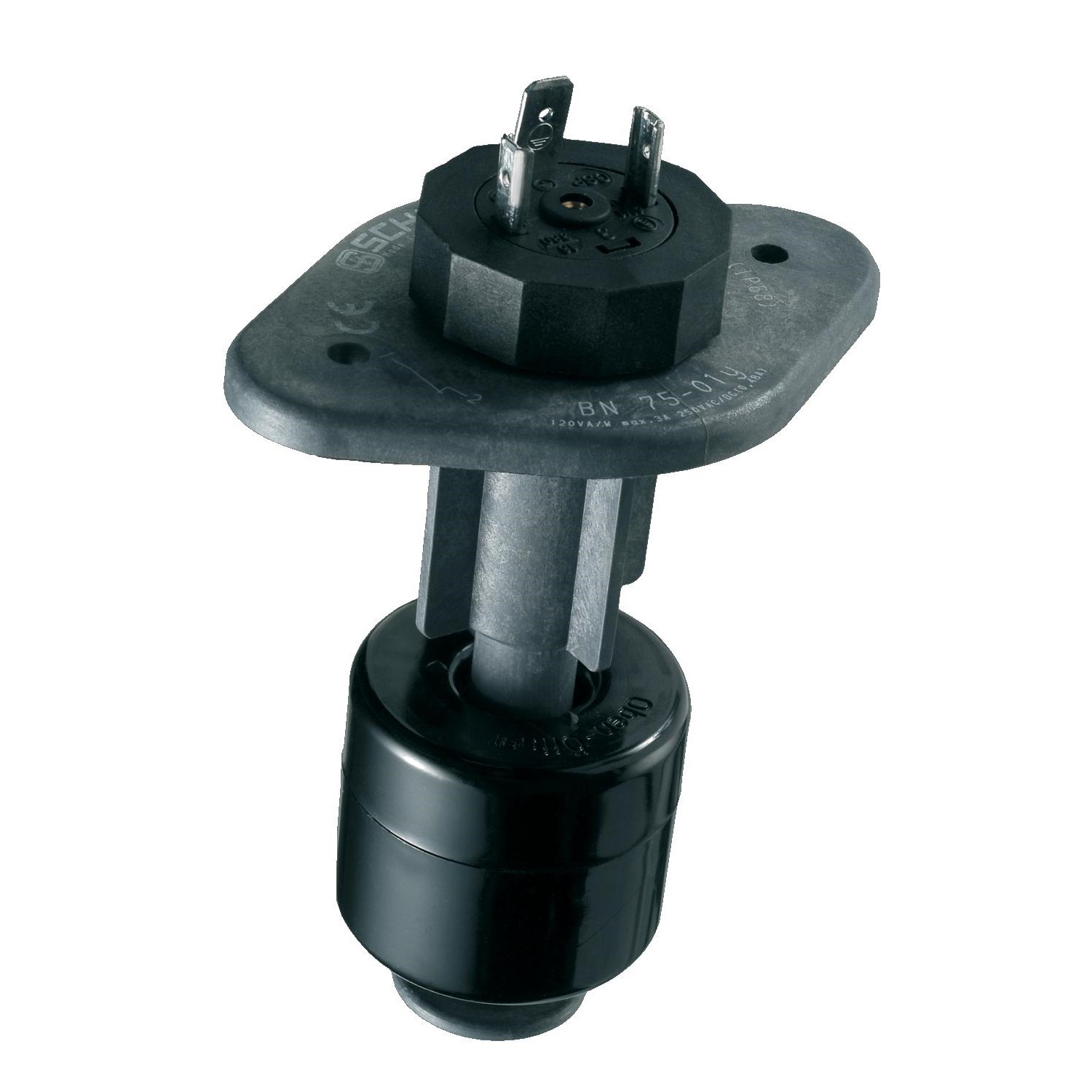

Schmersal 101055701 Magnetic Reed Switch 1A Connector Terminal

Product Code: 101055701

  • Rated for 220 VAC, 1 A
  • Durable glass fibre reinforced thermoplastic housing
  • IP65 protection against dust and water
  • Operates in -25 to 80°C temp range
  • Long mechanical life: 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Reed Switch
Brand SCHMERSAL
Actuating Element Magnet
Actuator Type Roller lever
Bounce Duration 0.2 ms
Cable Entry Without cable gland
Connector Type Connector plug M12, 4-pole
Contact Configuration NO+NC
Contact Material Silver
Control Element Reed Contacts
Degree of Protection IP65
Design Round
Enclosure Coating Material Nickel-plated
Front Ring Material ABS, chrome-plated
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Not flush
Mechanical Life 1000000000 Operations
Mounting Type Mounting flange EFM
Operational Temperature -25 to 80 deg C
Overvoltage Category 3
Rated Current 1 A
Rated Voltage 220 VAC
Sealing Type Form seals / Lip gaskets / Membrane
Switching Capacity 60 W
Switching Type Magnetic Drive
Terminal Type Screw terminals M20 x 1.5
Version Embeddable button - Front plate mounting

Description

<p>When selecting components for industrial or commercial applications, reliability and durability are paramount. The product at hand is designed to meet these needs with precision and efficiency. Operating at a rated voltage of 220 VAC and a current of 1 A, this device ensures optimal performance in various settings.</p><p>Constructed from glass fibre reinforced thermoplastic, the housing material offers robust protection against environmental factors while maintaining lightweight properties. This makes it ideal for installations where strength without added bulk is necessary. Additionally, the degree of protection rated at IP65 guarantees that the device is dust-tight and protected against water jets from any direction—an essential feature for harsh industrial environments.</p><p>The operational temperature range spans from -25&amp;#176;C to 80&amp;#176;C, providing flexibility across different climates and conditions. Whether installed in a cold storage facility or a high-temperature manufacturing plant, this product functions reliably within its specified parameters.</p><p>A notable feature of this device is its contact configuration comprising both Normally Open (NO) and Normally Closed (NC) contacts. This allows for versatile application possibilities depending on your system requirements. The switching type utilizes magnetic drive technology which enhances accuracy while minimizing mechanical wear over time.</p><p>The mechanical life of this product extends up to an impressive one billion operations, underscoring its long-term viability in demanding applications. Furthermore, it supports a switching capacity of 60 W with a minimal bounce duration of just 0.2 ms—ensuring quick response times crucial for precise control tasks.</p><p>The actuating element employs a magnet coupled with reed contacts as the control element. This combination not only provides reliable actuation but also reduces maintenance efforts due to fewer moving parts compared to traditional switches.</p><p>In summary, this product stands out as a dependable choice for those seeking quality components capable of enduring rigorous use without compromising performance or safety standards—a testament to thoughtful engineering tailored for real-world demands.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
