Maximum Fuse Rating	10 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	5
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Positive Break Travel (mm)	17.5
Rated Operational Current AC-15 (A)	6
Rated Operational Current DC-13 (A)	4
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Sensor Height (mm)	108.5
Sensor Length (mm)	43
Sensor Width (mm)	40
Switching Element	NO Contact, NC Contact
Switching Principle	Snap Action
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	10
Utilisation Category	DC-13
Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP67
Enclosure Coating Material	Painted
Housing Material	Aluminium
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.5
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	400
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Pushbuttons & Operator Devices

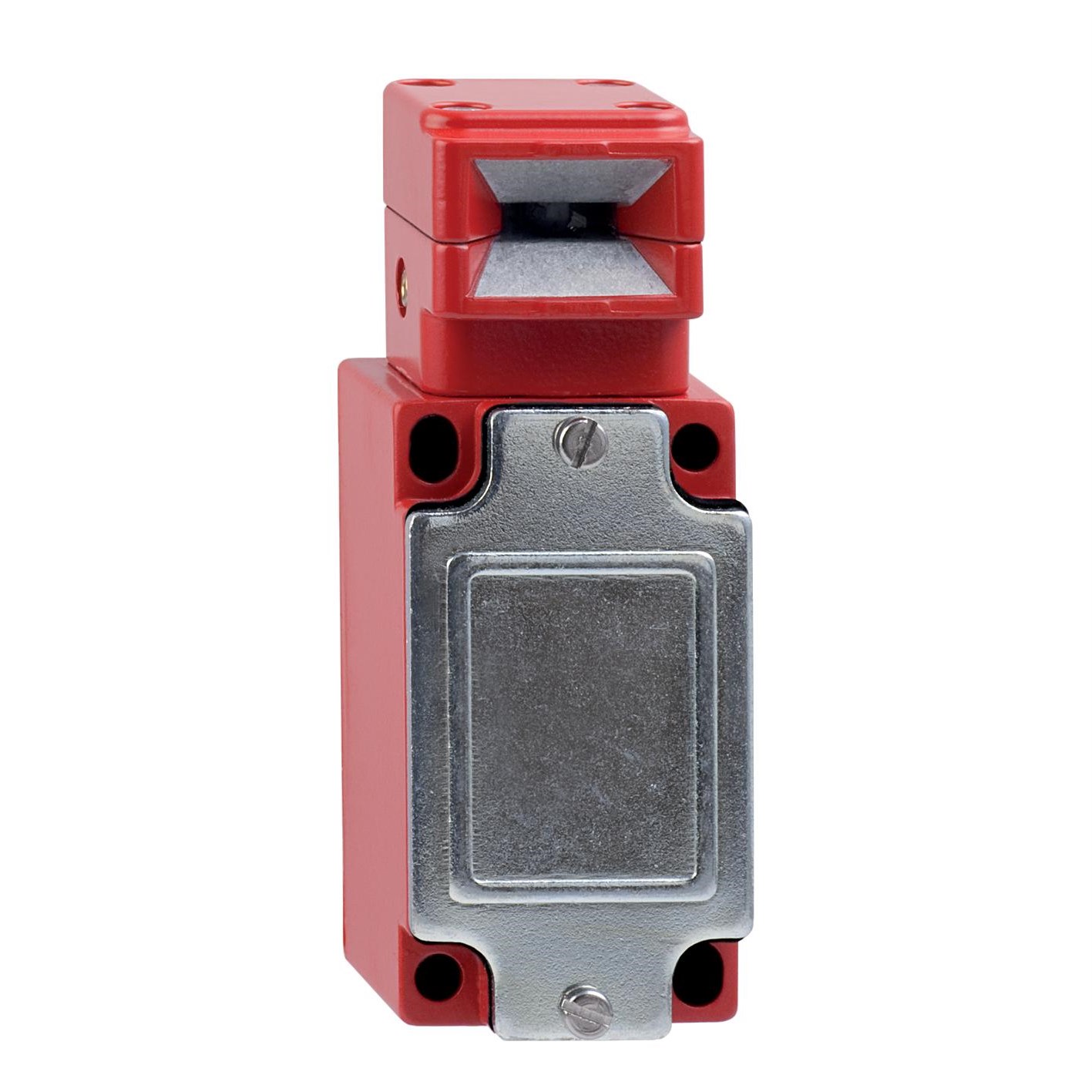

SCHMERSAL SHG01.92/90SAFETY SWITCHWITH SEPARATE ACTUATOR 101020900
